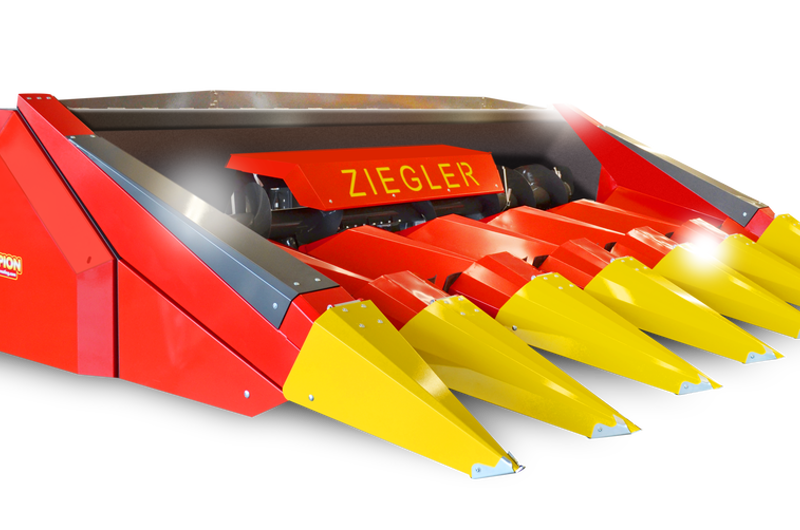

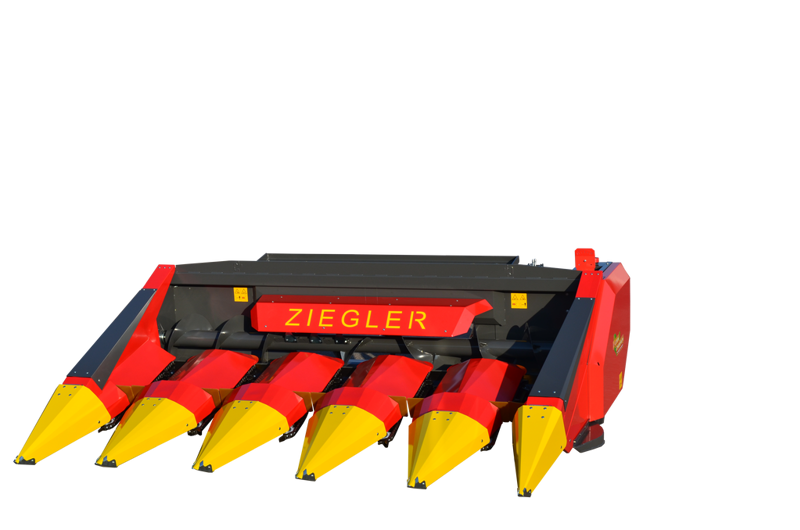

CORN CHAMPION
The chopper units, which are equipped with a free-wheel gearbox and a separate oil circuit, are the corn header’s pride. During a machine stop the machine is safeguarded by its freewheel and the self-sufficient oil circuit ensures the corn header’s proceeding service in case of any disturbances or a damaged unit. This simplifies the maintenance and reduces the set-up time. The engineering and manufacturing process guarantees the blades remain sharper for longer and the chopper units remain cleaner thanks to their flatter placement. Extra long spiked rollers guarantee smooth picking of the cobs from the stalks while two extra large bearings inside the auger heads ensure a smooth flow and long durability. The extremely long construction allows a flat harvesting angle which harvests corn efficiently and gently.
Features and Specifications

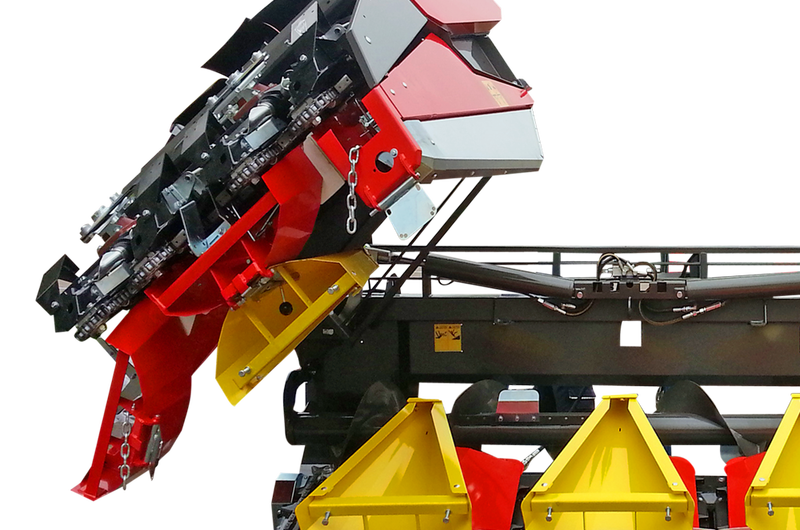

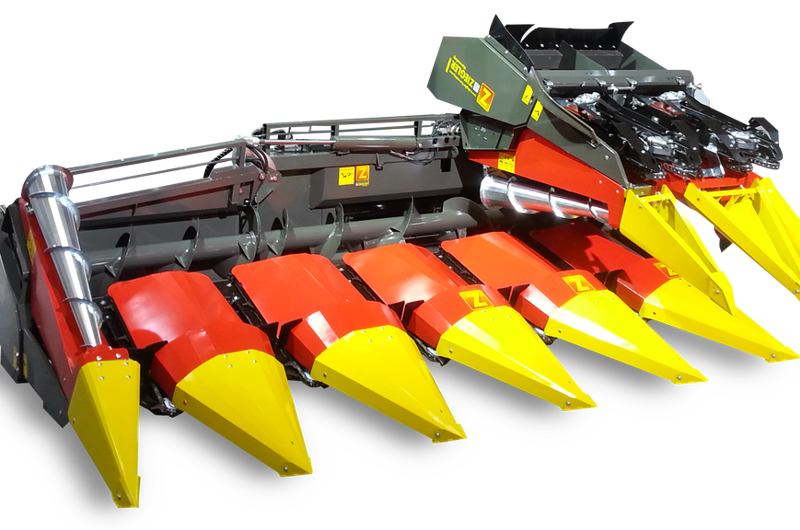

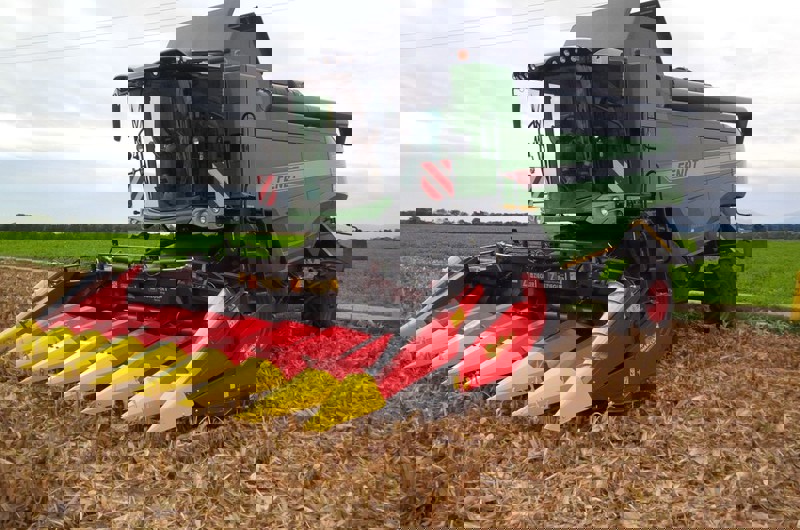

- Available as a fixed or a foldable version for a range of combine harvesters and rotary-type stalk choppers
- Horizontal rotary-type stalk chopper: with a free-wheel gearbox independent of the main drive system and equipped with an autonomous oil circuit

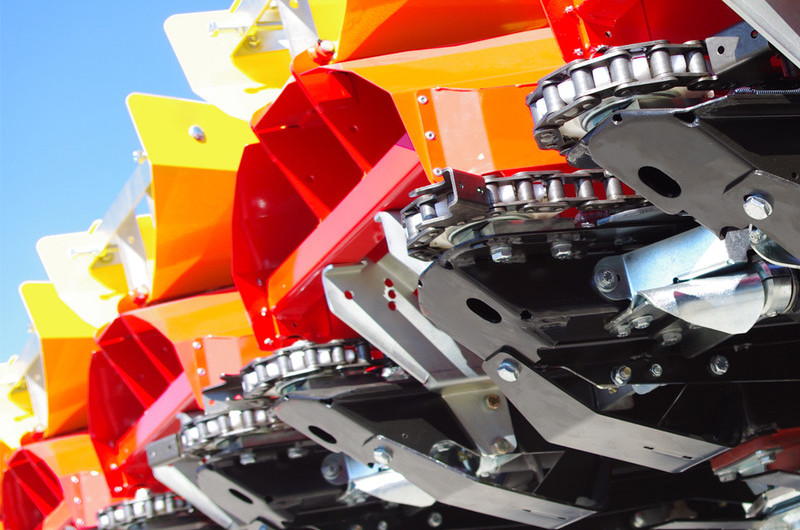

- A newly-conceived blade spiked roller bearing head with precisely-adjustable knives
- Counter knives ensure flawless operation even in the event of thick growth; the combination of extra-long conveyor chains with an automatic tensioning unit ensures a long service life
- The chopped stalk is extra fine to prevent pest infestations
- The header unit is highly-accessible for maintenance work
- All lubrication nipples are easily accessible
Options
- Hydraulic clutch
- Multi-coupling system
- Stubble bender (combine wheel guard)
- Silage maize auger (right and left)
- Auto contour for corn header
- Sunflower kit

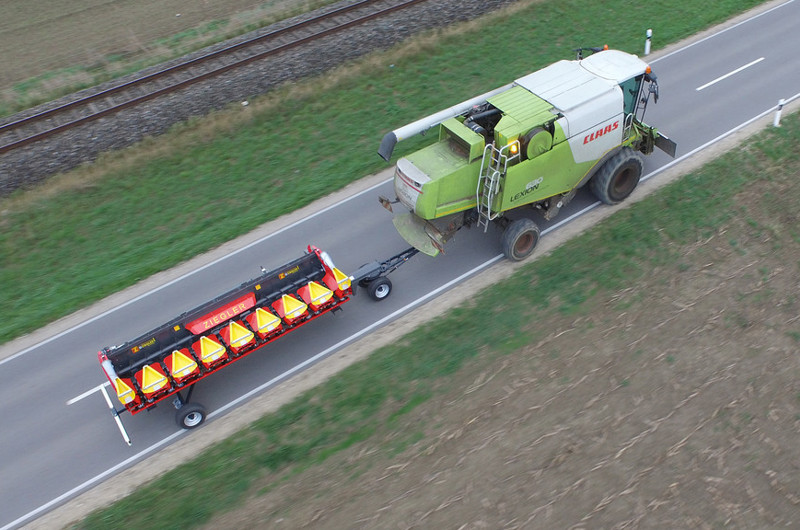

- Ziegler header trailer
- Mounting pads for Ziegler header trailer
- Caddy
| Product | Rows | Row distance cm | Width mm | Height mm | Depth mm | Weight kg |
|---|---|---|---|---|---|---|
| Corn header fixed | 5 | 70 | 3700 | 1270 | 2820 | 1650 |
| 5 | 75 | 3900 | 1220 | 2820 | 1710 | |
| 6 | 70 | 4550 | 1220 | 2820 | 1932 | |
| 6 | 75 | 4800 | 1220 | 2820 | 1990 | |
| 8 | 70 | 5950 | 1220 | 2820 | 2529 | |
| 8 | 75 | 6300 | 1220 | 2820 | 2640 | |
| 12 | 70 | 8690 | 1220 | 2820 | 4100 | |
| 12 | 75 | 9240 | 1220 | 2820 | 4450 | |

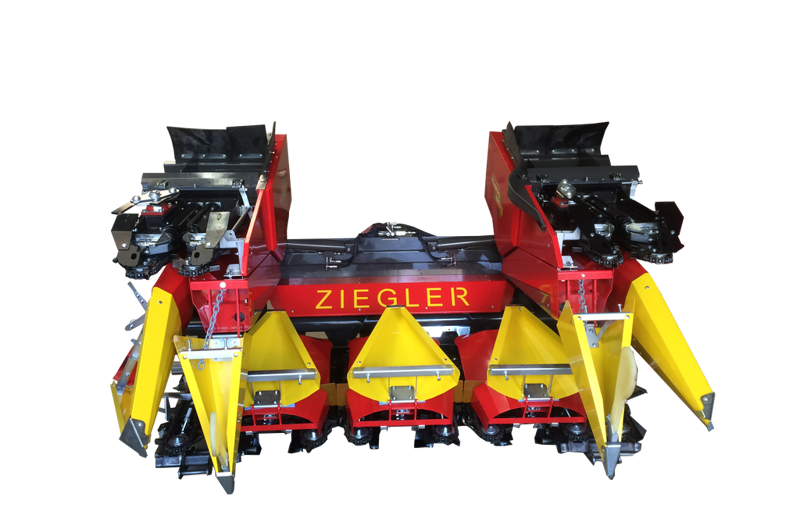

| Corn header foldable | 6 | 70 | 4440 | 1400 | 2750 | 2450 |
| 6 | 75 | 4700 | 1400 | 2750 | 2550 | |
| 8 | 70 | 5840 | 1400 | 2750 | 2950 | |
| 8 | 75 | 6190 | 1400 | 2750 | 3050 |
