DOUBLE AXLE Trailer

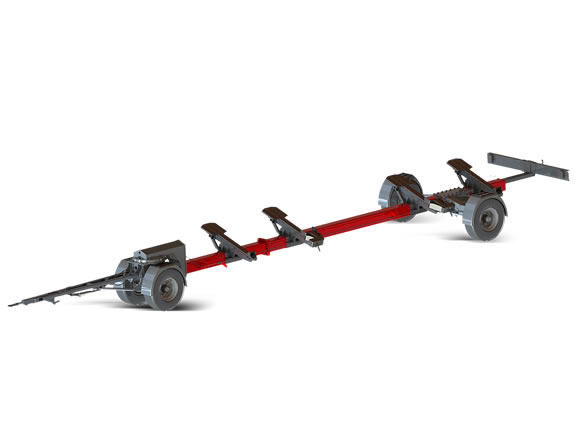

The ZIEGLER 2-axle trailer with stable live ring at the front axle guarantees maximum stability, a small turning cycle and smooth towing. Our 2-axle trailers can transport harvesting attachments with working widths of up to a max of 10.7 m and grant a permissible total weight of 6 tons. Due to the movable axle and freely movable supports, this model can be adjusted to carry almost every current cutting system.

DOWNLOAD BROCHURE VIEW ON ZIEGLER WEBSITE

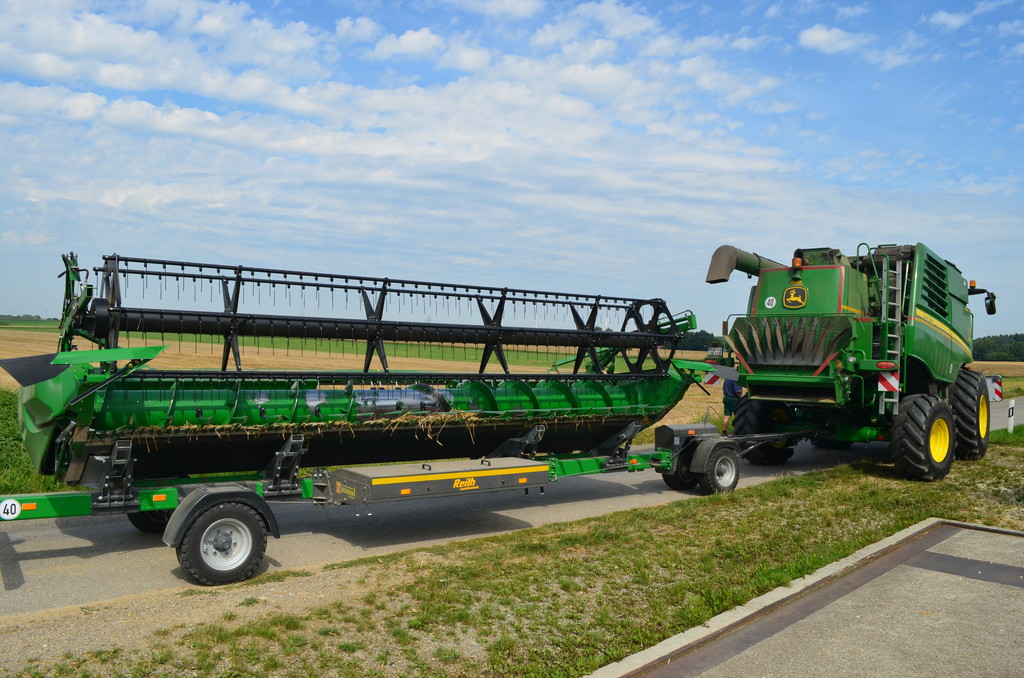

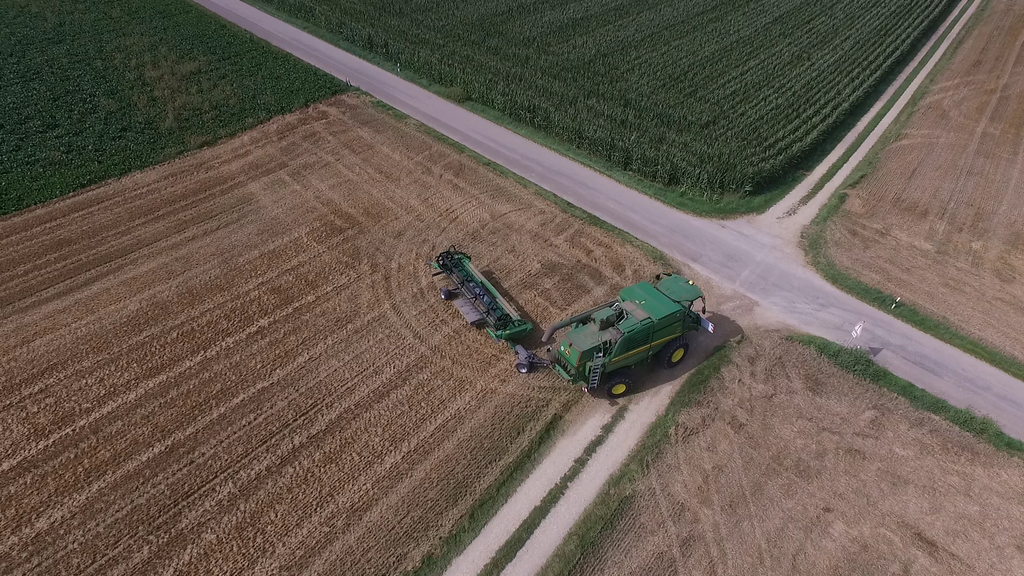

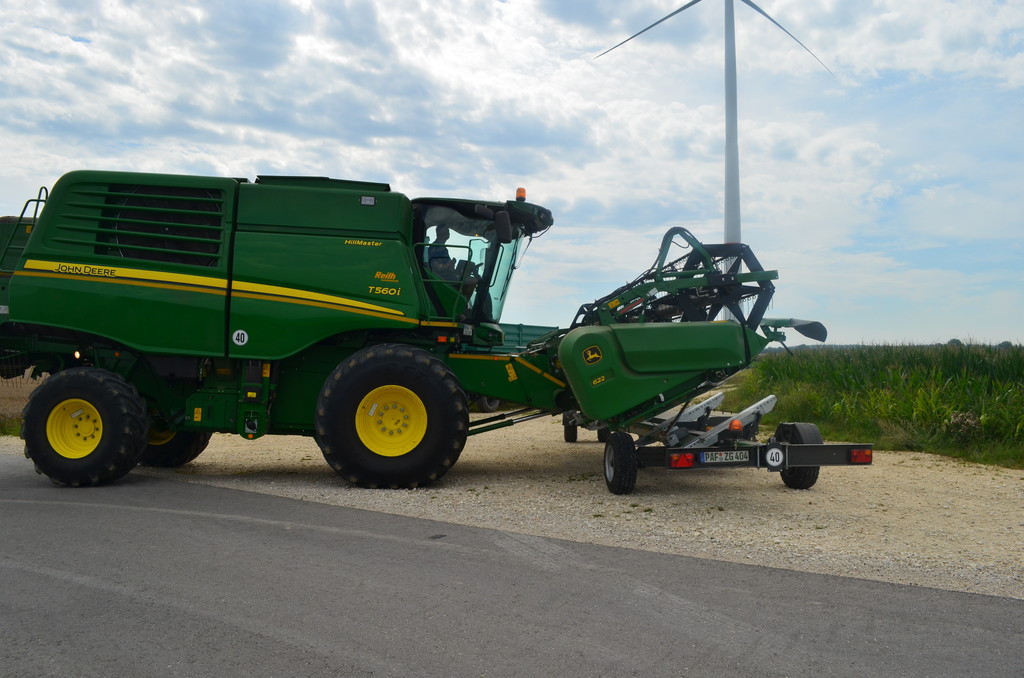

GALLERY

FEATURES AND SPECIFICATIONS

FEATURES

Models for almost every header
V-interlocking for easy header drop-off
Painted to correspond to harvester (without additional charge)
Galvanised supports and interlockings
Flexible rear light carriers
Bearing load: 3,000 kg
Axle load: 3,000 kg

Options

Storage box
Reflector kit
Side lighting kit
Rotating beacon
Positioning aid for cutting system’s storage
22 PR Tyres
Tool box
Spare wheel carrier
Complete wheel cover
40 km/h arrangement with mudguards

TECH SPEC

	1-axle	2-axle	4WT	Tandem
Permitted front axle load	600 kg	3,000 kg	3,000 kg	600 kg
Permitted back axle load	3,000 kg	3,000 kg	3,000 kg	3,000 kg
Permitted total weight	3,600 kg	6,000 kg	6,000 kg	3,600 kg
Maximum width header	7.7 m	10.7 m	12.5 m	9.5 m
Brake	Option: parking brake	Overrun brake	Overrun brake	Option: hydraulic brake
Option	30km/h	40km/h	40km/h
