- Available as a fixed or a foldable version for a range of combine harvesters and rotary-type stalk choppers
- Horizontal rotary-type stalk chopper: with a free-wheel gearbox independent of the main drive system and equipped with an autonomous oil circuit

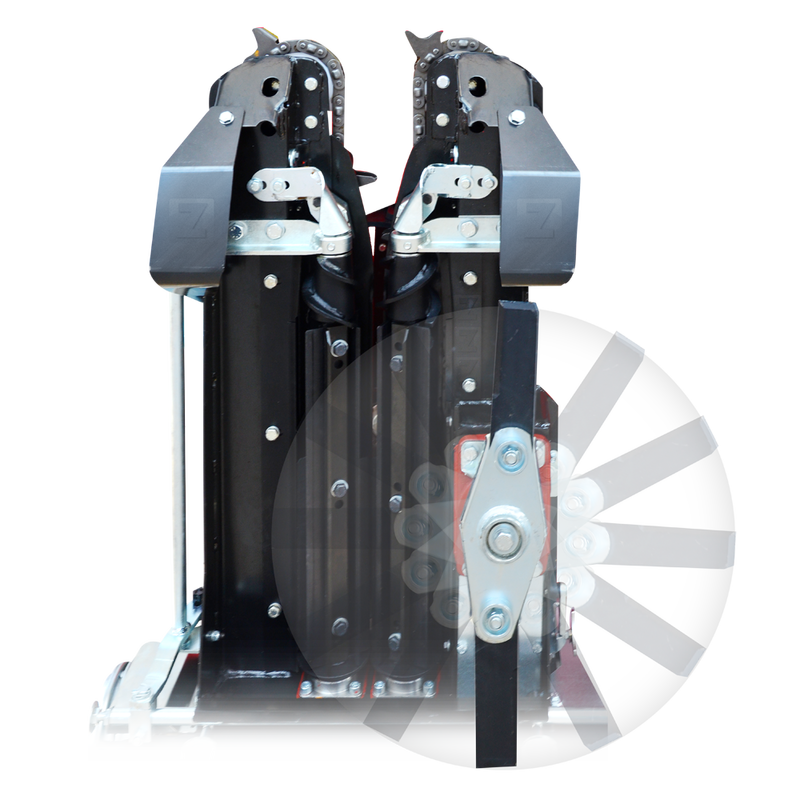

- A newly-conceived blade spiked roller bearing head with precisely-adjustable knives
- Counter knives ensure flawless operation even in the event of thick growth; the combination of extra-long conveyor chains with an automatic tensioning unit ensures a long service life
- The chopped stalk is extra fine to prevent pest infestations
- The header unit is highly-accessible for maintenance work
- All lubrication nipples are easily accessible
Options
- Hydraulic clutch
- Multi-coupling system
- Stubble bender (combine wheel guard)
- Silage maize auger (right and left)
- Auto contour for corn header
- Sunflower kit

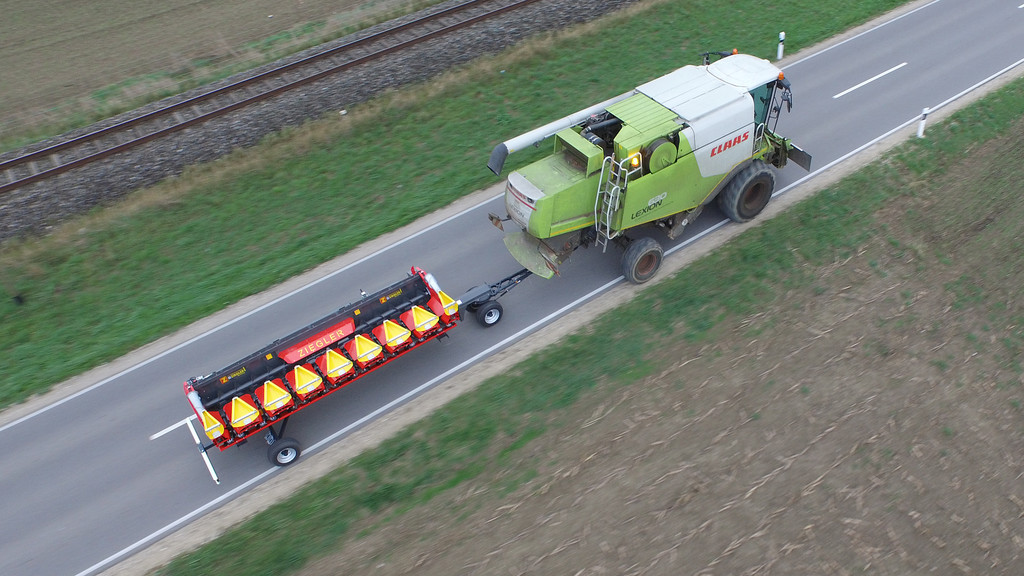

- Ziegler header trailer
- Mounting pads for Ziegler header trailer
- Caddy

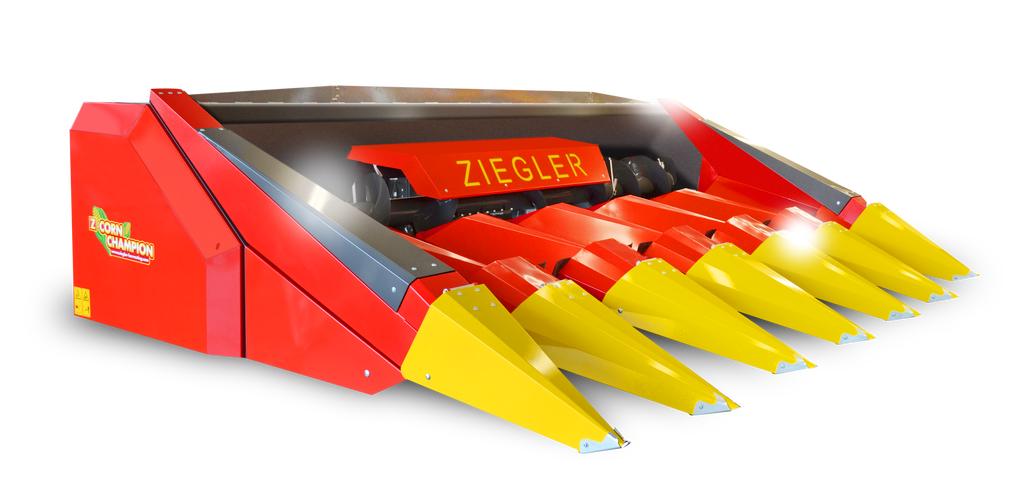

CORN CHAMPION MAIZE HEADER

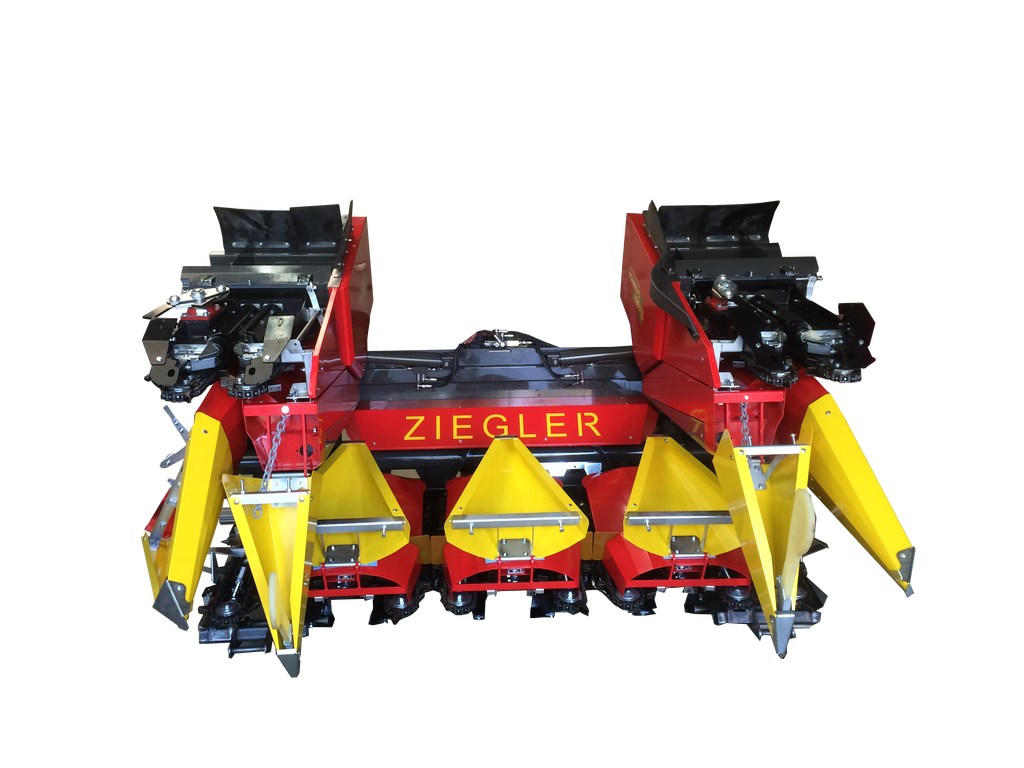

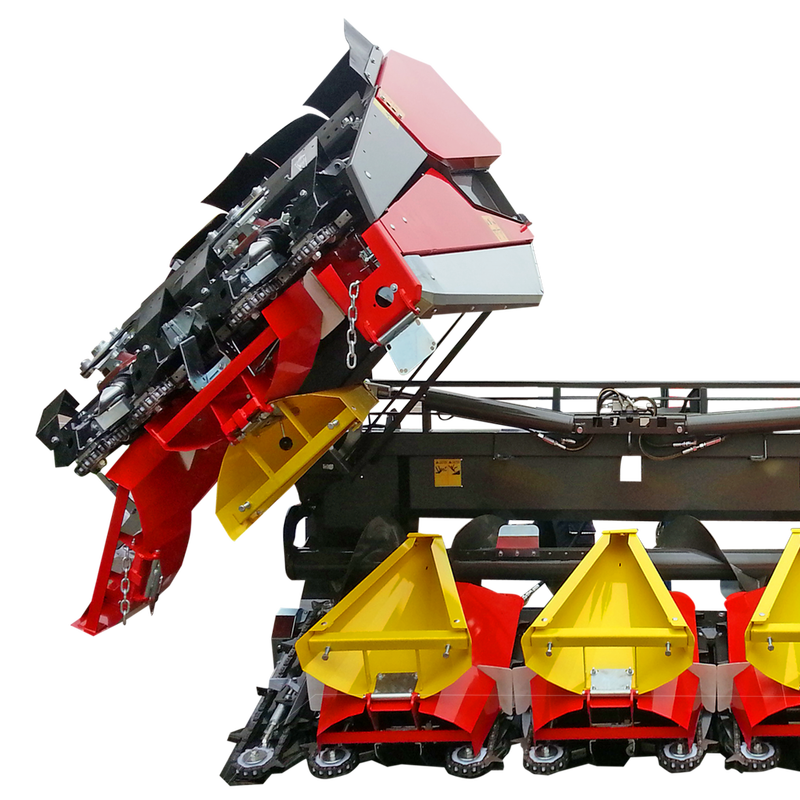

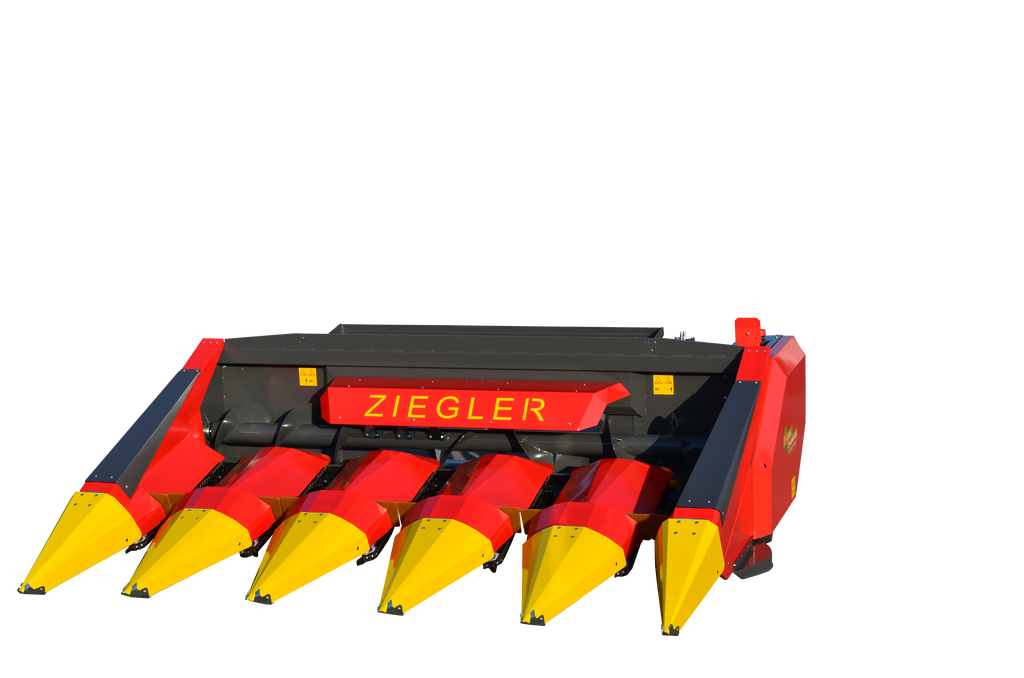

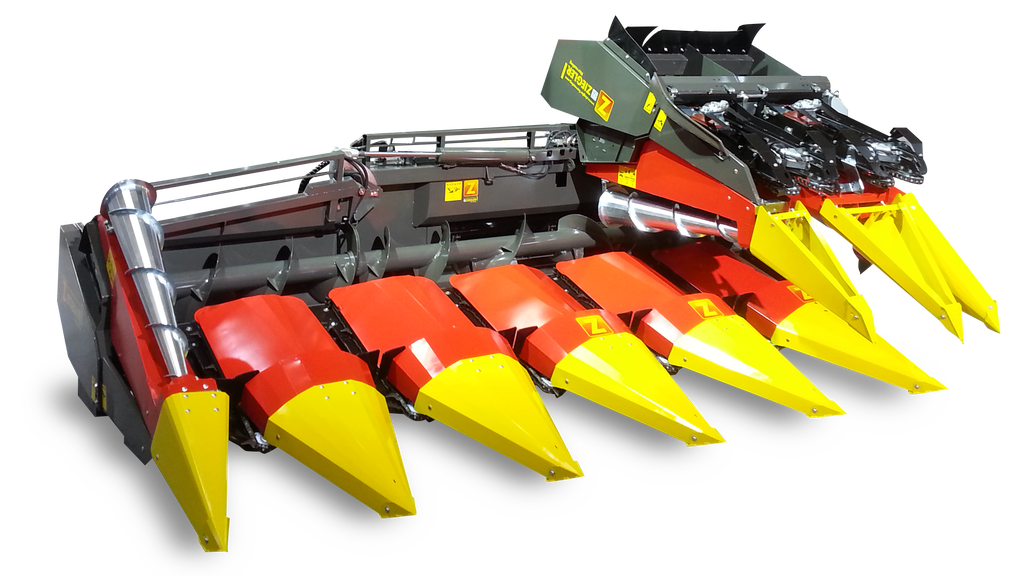

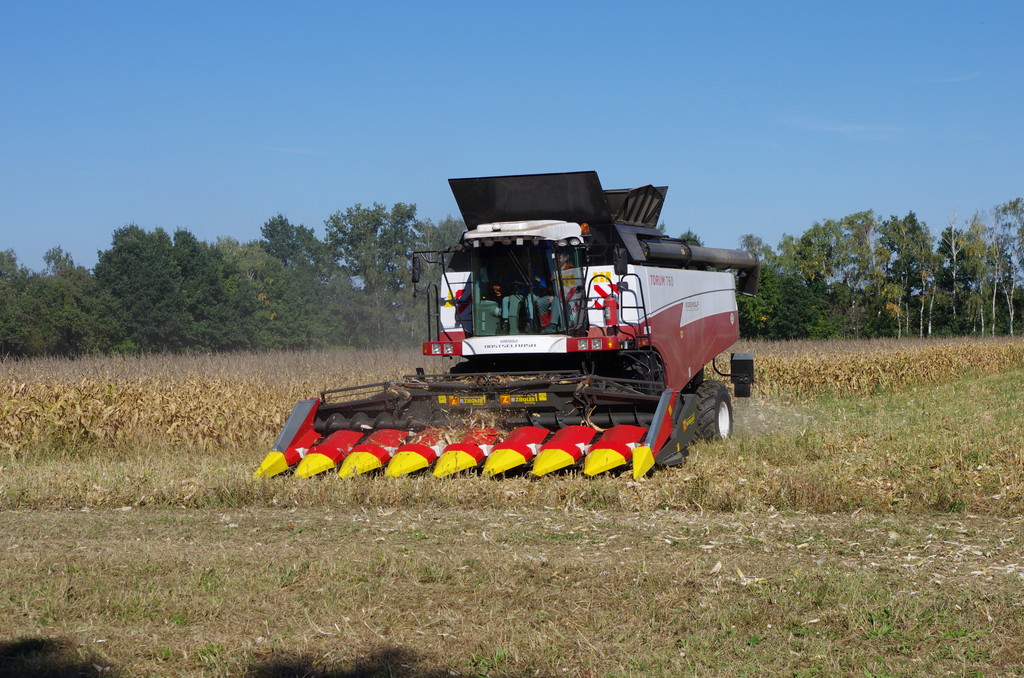

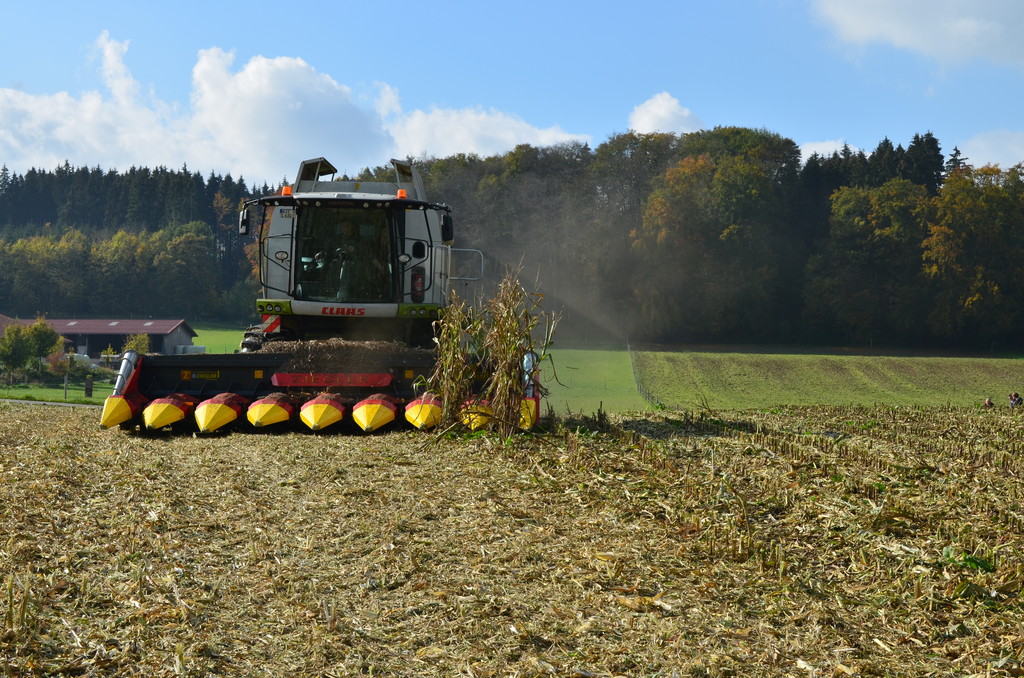

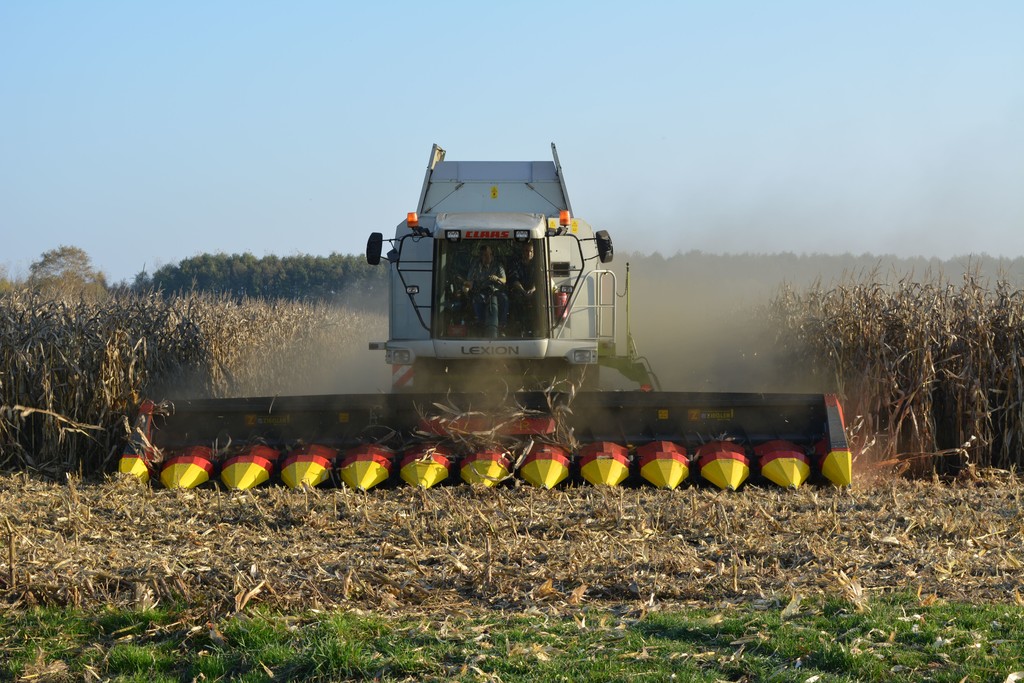

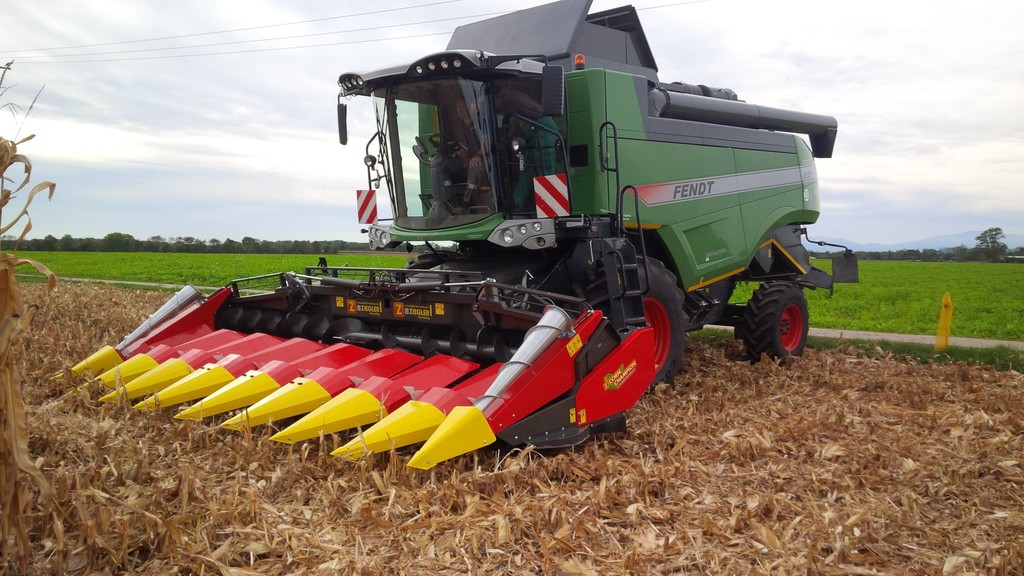

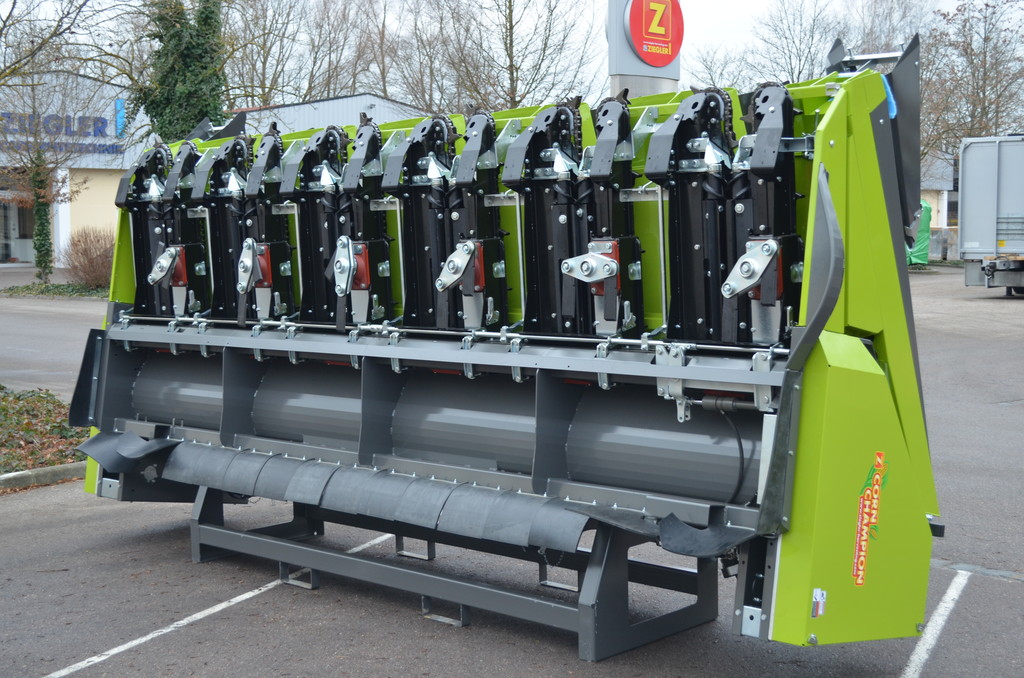

The CORN CHAMPION from ZIEGLER is available in 5-, 6-, 8- and 12-row versions. The 6- and 8-rowers can be folded in/out hydraulically, making them ideal for road transport. All models are optionally available with 50, 70 or 75 cm row spacing. The CORN CHAMPION is a robust and reliable corn picker that comes up with many features and convinces with its price-performance ratio.

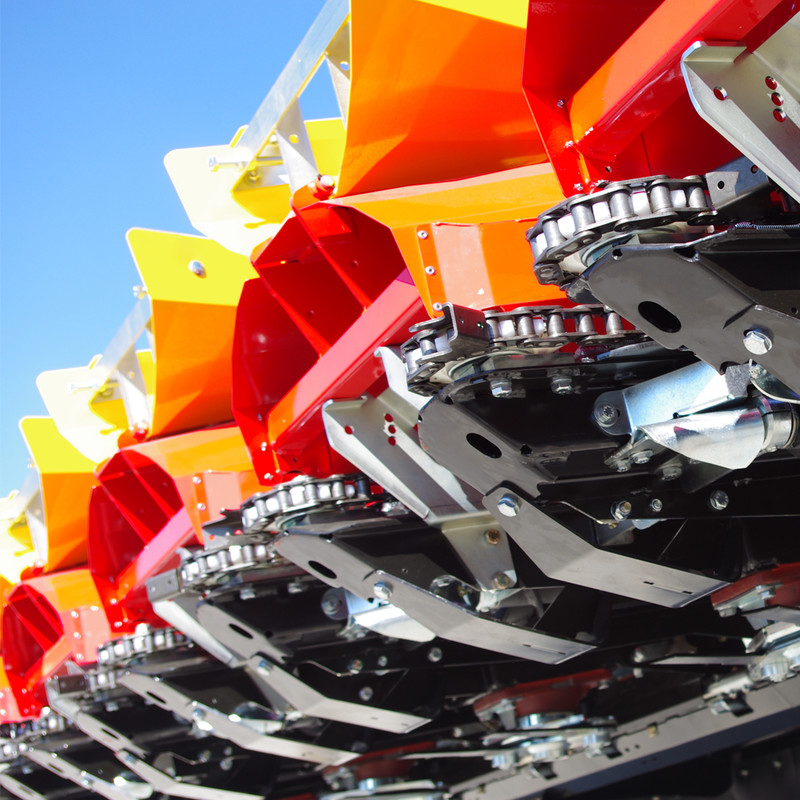

The engineering and manufacturing process guarantees the blades remain sharper for longer and the chopper units remain cleaner thanks to their flatter placement. Extra long spiked rollers guarantee smooth picking of the cobs from the stalks while two extra large bearings inside the auger heads ensure a smooth flow and long durability. The extremely long construction allows a flat harvesting angle which harvests corn efficiently and gently.
GALLERY
FEATURES AND SPECIFICATIONS
| Product | Rows | Row distance cm | Width mm | Height mm | Depth mm | Weight kg |
|---|---|---|---|---|---|---|
| Corn header fixed | 5 | 70 | 3700 | 1270 | 2820 | 1650 |
| 5 | 75 | 3900 | 1220 | 2820 | 1710 | |
| 6 | 70 | 4550 | 1220 | 2820 | 1932 | |
| 6 | 75 | 4800 | 1220 | 2820 | 1990 | |
| 8 | 70 | 5950 | 1220 | 2820 | 2529 | |
| 8 | 75 | 6300 | 1220 | 2820 | 2640 | |
| 12 | 70 | 8690 | 1220 | 2820 | 4100 | |
| 12 | 75 | 9240 | 1220 | 2820 | 4450 | |
| Corn header foldable | 6 | 70 | 4440 | 1400 | 2750 | 2450 |
| 6 | 75 | 4700 | 1400 | 2750 | 2550 | |
| 8 | 70 | 5840 | 1400 | 2750 | 2950 | |
| 8 | 75 | 6190 | 1400 | 2750 | 3050 |
