FLAIL MOWERS

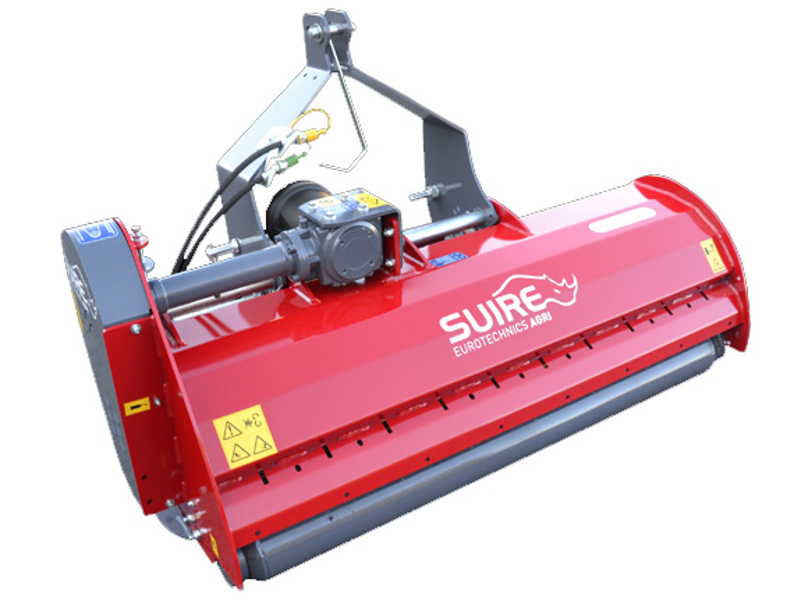

ROTOGYR VV

VINEYARDS AND ORCHARDS

• 3-point linkage, link pins cat. 1 and 2 - Bolted offset from 0 to 322 mm
• 60 HP gearbox with integrated overrun, PTO shaft 540 rpm
• Closed frame
• Anti-projection galvanised flaps
• Front reinforced anti-projection flap
• Cutting height control through roller
• Optional vineyard grid
• Optional hydraulic sliding linkage

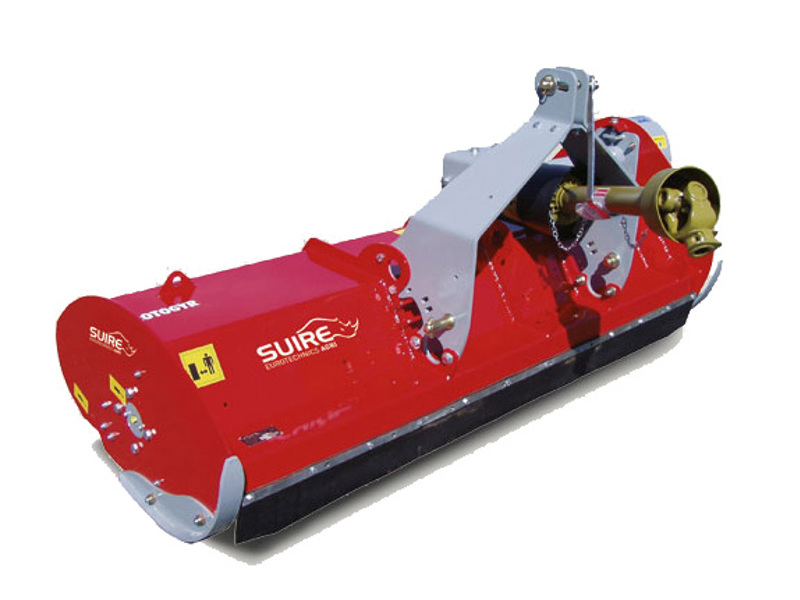

ROTOGYR MVS

ROADSIDES, PASTURE, SET ASIDE, VINEYARDS, ORCHARDS

• Bolted linkage, link pins cat. 1 and 2, offset to the right of 0 or 425 mm
• 100 HP gearbox with incorporated overrun, PTO shaft 540 rpm
• For front or rear mounting use, take the option of the 130 HP gearbox and double overrun device 1000 rpm for tractor front PTO shafts turning in all directions
• Rotor Ø 170 mm (hammers or Y)
• Anti-projection galvanised flaps
• Cutting height control through roller Ø 160 mm
• Right bearing integrated in the frame

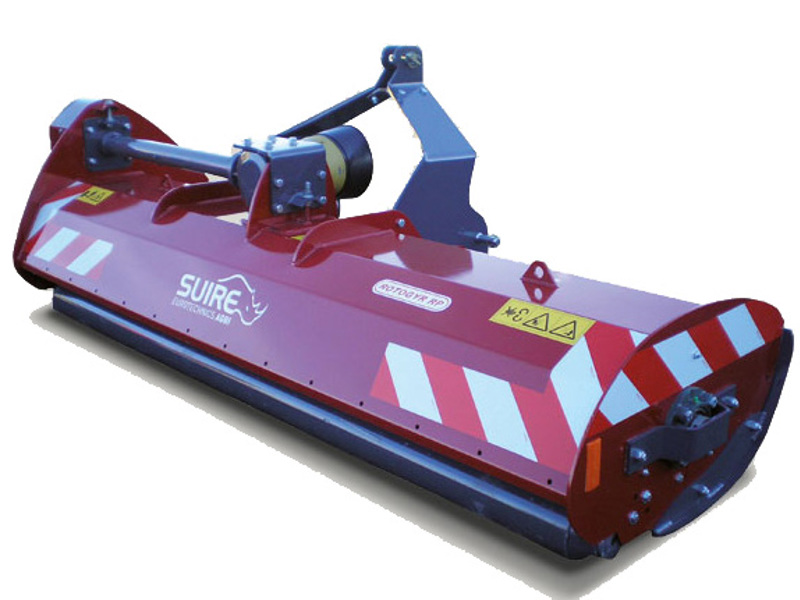

ROTOGYR RP

LIGHT SET ASIDE, PASTURE

• Floating linkage heavy duty link pins cat. 2, offset to the right of 0 or 517 mm
• PTO shaft with security by shear bolt
• 100 HP gearbox with incorporated overrun, PTO shaft 540 rpm (optional 130 HP, 1000 rpm)
• Anti-projection galvanised flaps
• Rotor Ø 170 mm (hammers or Y flails)
• Roller Ø 160 mm

ROTOGYR PJ

VERSATILE MODEL FOR PASTURE AND SET ASIDE

• Floating linkage heavy duty link pins cat. 2, offset to the right of 0 or 515 mm
• 130 HP gearbox with incorporated overrun, PTO shaft 540 rpm (180 HP, 1000 rpm optional)
• Rotor Ø 193 mm (PJ) or Ø 220 (PJR). Flails: hammers or Y
• Anti-projection galvanised flaps (front chain curtain optional)
• Height control through:
- roller
Ø 160 mm (PJ 2500)
Ø 194 mm (PJ 2800/PJR 3200)
- or adjustable half-swivelling wheels Ø 610 L.210 mm
• Bolted offset linkage and floating third point linkage, manual or hydraulic sliding linkage (optional)

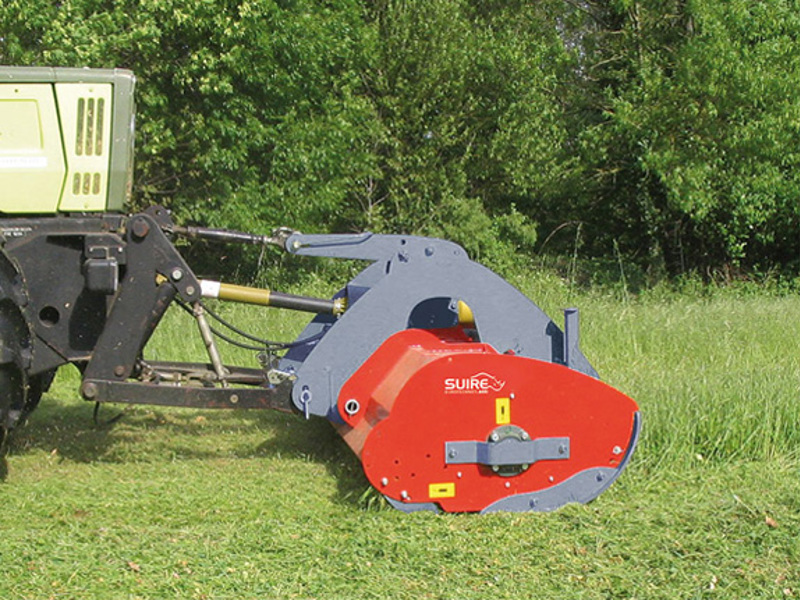

ROTOGYR PJ

COMBINED FRONT AND REAR MOUNTING, FOR PASTURE AND SET ASIDE MAINTENANCE

•Double linkage with swivelling 3rd point to be used front AND rear
• Hydraulic sliding offset linkage, floating heavy duty pin linkage cat. 2, offset to the right from 0 to 500 mm
• 180 HP gearbox PTO shaft 1000 rpm with incorporated double overrun, for tractor front PTO shaft turning in all directions
• Rotor Ø 193 mm (FT) or Ø 220 (FTR), with hammers or Y
• Closed frame
• Height control through roller Ø 160 mm (FT 2500) Ø 194 mm (FT 2800 - FTR 3200)
• Anti-projection galvanised flaps + bearing protection. Replaceable round skids (smooth shape).
• Rear anti-projection flap avoids the increase of dust in front of the tractor

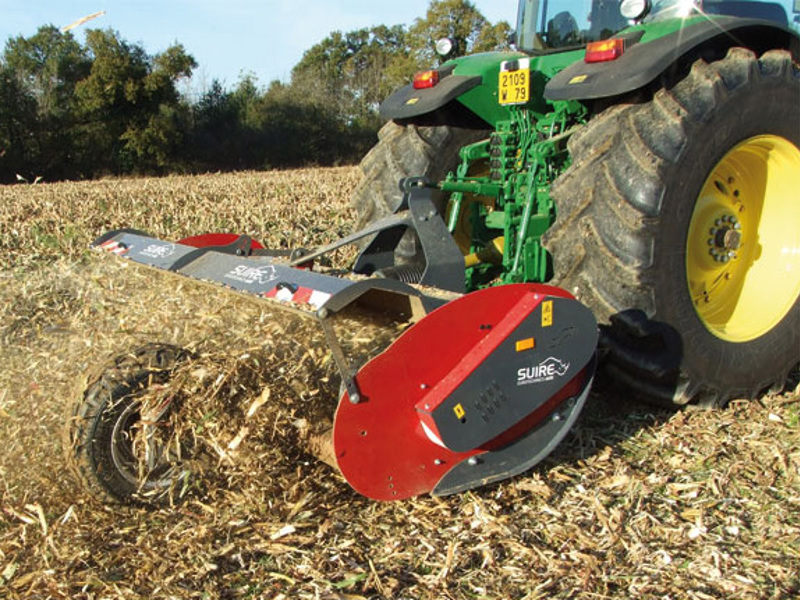

ROTOGYR SL

SINGLE OR DOUBLE DRIVE. FOR THE SHREDDING OF STRAW, MAIZE, OR SUNFLOWERS, AND THE MAINTENANCE OF GRASS, PASTURE LAND AND SET ASIDE.

• Connection gearbox / drive wheel by PTO shafts for easy maintenance and increased reliability. Front covers avoid material deposits.
• Floating centred 3-point linkage, heavy duty cat. 2 link pins
• Gearbox with incorporated overrun 260 HP in all directions
• PTO shaft with security by shear bolt
• Rotor Ø 245 mm x 12.5 mm
• Anti-projection galvanised flaps
• Depth control through roller Ø 194 or half swivelling wheels Ø 760 L. 275 mm
• Steel deck (frame + extra steel deck = 8 mm)
