SUIRE STRAW BLOWERS & FEEDERS

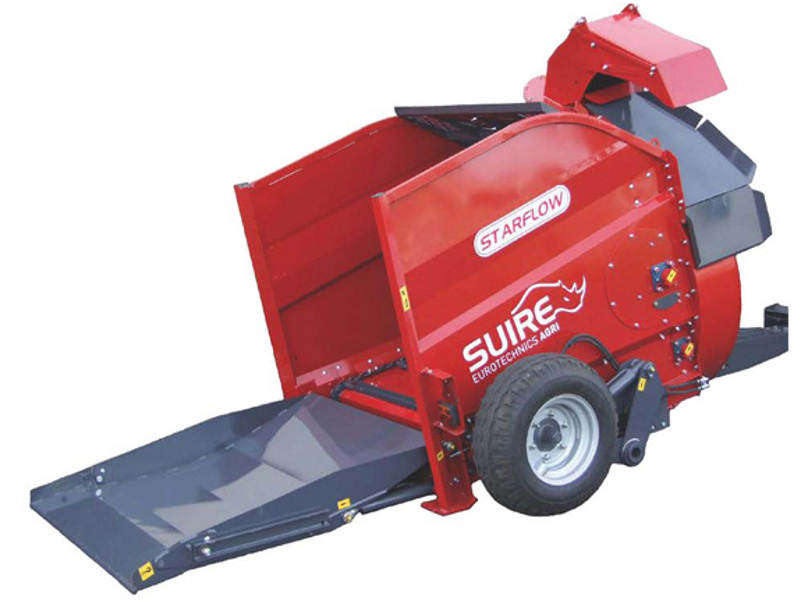

STARFLOW 220

SEMI-MOUNTED MODELS, SPECIALLY ADAPTED TO SMALLER TRACTORS

• The STARFLOW 220 can load 1 bale up to Ø 2 m, 2 round bales of Ø 1.50 m or 1 cubic bale 2.70 m long
• The semi-mounted Starflow 220 has a wheel axle with tipping movement to lower the machine onto the ground and make loading easier. The draw bar hitch has an articulated bar
• Specially adapted to smaller tractors, the semi-mounted version has 10/75 R15 wheels

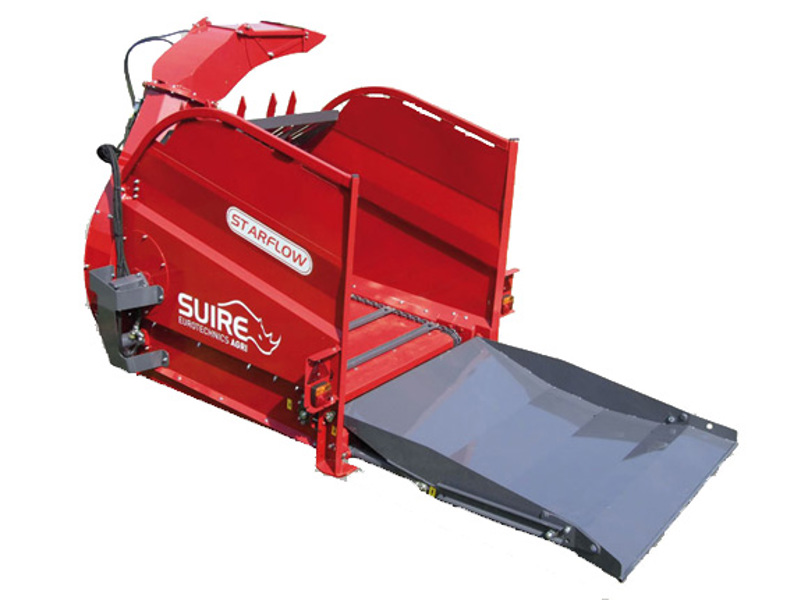

STARFLOW 220 SH-P / SH-SP

STRAW BLOWER WITH HYDRAULIC DRIVE ROTOR FOR HIGH PERFORMANCE SPREADING

• Rotor with hydraulic drive needing less power. It has knives and hooks to combine aggressiveness with even spreading
• 2 hydraulic motors allow independent conveyor and rotor speed adjustments. The motors are protected from shocks by a deflector
• Exclusive to SUIRE, the rotor's hydraulic motor has 2 bearings for support

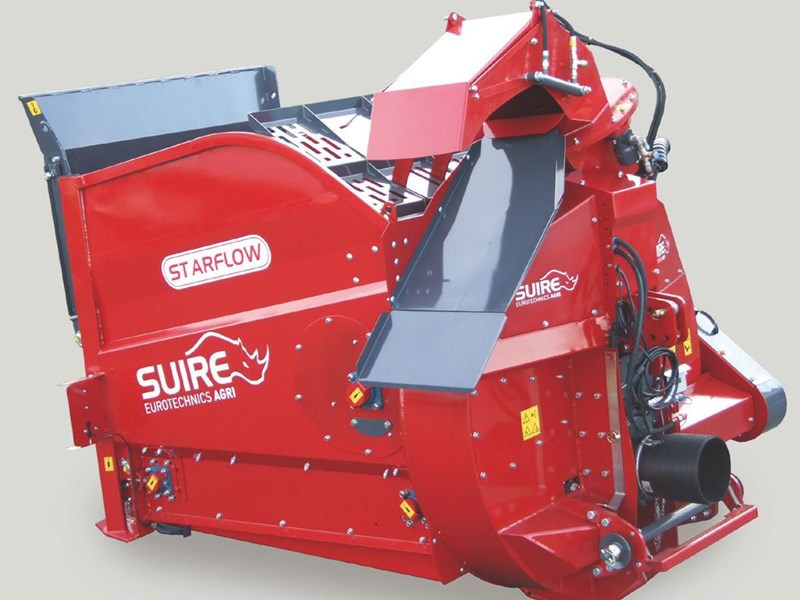

STARFLOW 220 SM-P / SM-SP

STRAW BLOWER AND FEEDER WITH MECHANICAL DRIVE (STRAW, HAY, SILAGE BALE)

• The big-diameter mechanically driven with 48 knives rotor can be used for straw spreading and distribution of hay and silage. Its double alternated aggressive knives
allow to smash, cut and distribute all fodder types
•​ The toboggan distributor allows the arrangement of forage in the trough close to the machine
• The mechanical chain rotor drive has an automatic chain tension for less maintenance and a longer life. In case of locking, the drive line is protected by a slip clutch on the PTO shaft and a shear bolt on the sprocket wheel of driven rotor

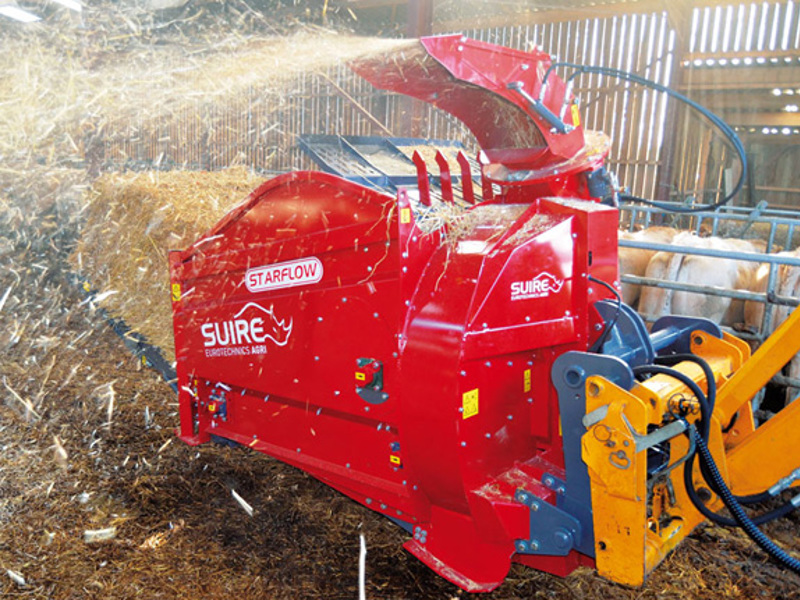

STARFLOW 220 SH / ET

MAXIMISE THE USE OF A TELESCOPIC HANDLER AND EASILY REACH PLACES WITH DIFFICULT ACCESS

• Container volume of 2.2 m3, with capacity to load round bales up to 2 m in diameter and square bales measuring 2.80 x 1.20 x 1.30 m
• Removable coupling on telescopic handler with control unit in cabin (as standard) and spiral cable (extension 2.50 m) giving improved visibility of the straw spreading area for maximum user comfort
• Powered by a 140 cm3 high-performance hydraulic motor, connected to the turbine by a large-sized sprocket/chain system. Turbine rotation speed of 540 rpm for uniform spreading up to 15 m. (Recommended minimum flow: 75 l/min)
• Possibility of fitting the machine with a hydraulic cooling unit as an added option recommended for more than 3 consecutive bales

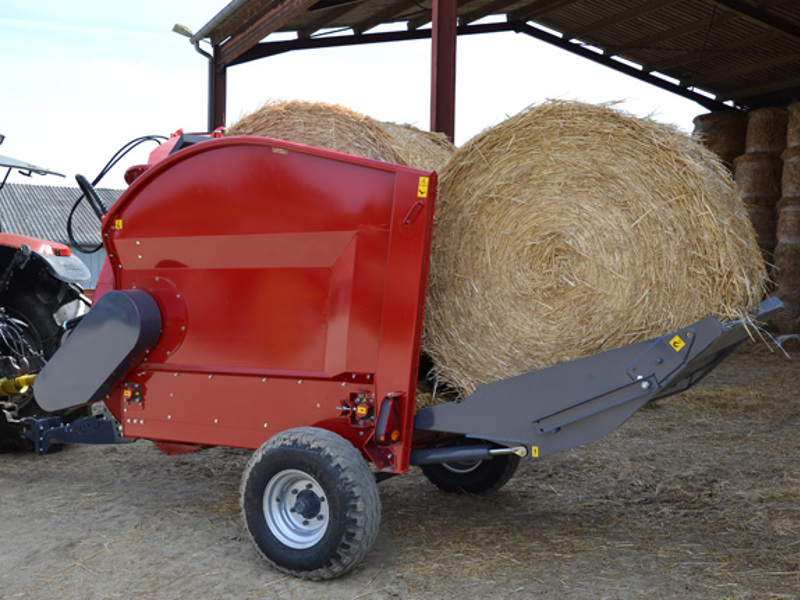

STARFLOW 400 SM-SP

STRAW BLOWER AND FEEDER WITH MECHANICAL DRIVE (STRAW, HAY, WRAPPED BALES, SILAGE IN BULK)

• Trailed machine with rigid wheel axle, wheels 11.5/80 R 15.3 14 ply, draw bar height adjustment, articulated hitch for lower arms or rigid eye Ø 51 mm, manual removable parking leg
• Superior loading capacity
   - 1 round bale Ø 2.00 m
   - or 2 round bales Ø 1.80 m
   - or 1 square bale 2.80 m
• The mechanically driven rotor with a diameter of 60 knives allows it to distribute straw, hay and wrapping. Its double sections with alternating aggressiveness allows it to shred, cut and distribute the forage
• The mechanical chain rotor drive has an automatic chain tension for less maintenance and a longer life. In case of locking, the drive line is protected by a slip clutch on the PTO shaft and a shear bolt on the sprocket wheel of the driven rotor
• A hydraulic motor with gearbox drives the conveyor with more torque, which enables it to process heavier bales and bulk silage
• Toboggan with manual slope adjustment and wide opening to prevent obstruction with long items
