TANDEM HEADER TRAILER

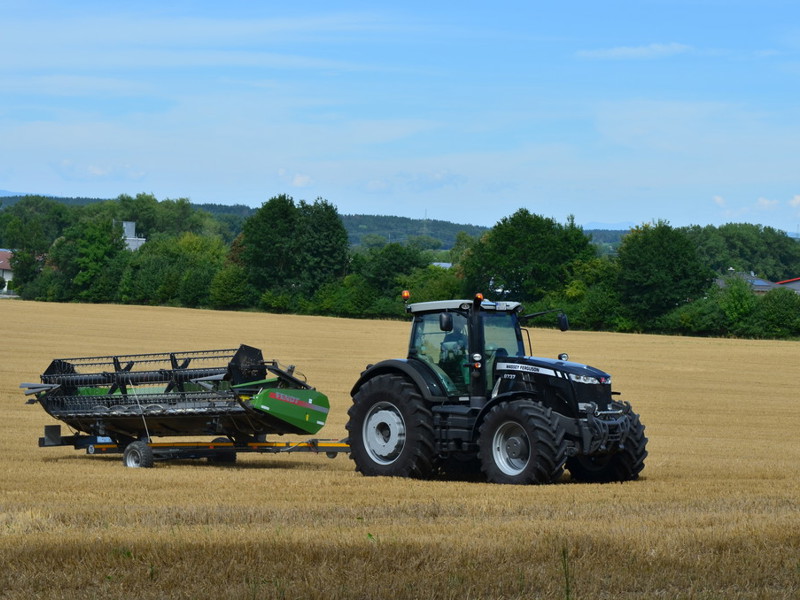

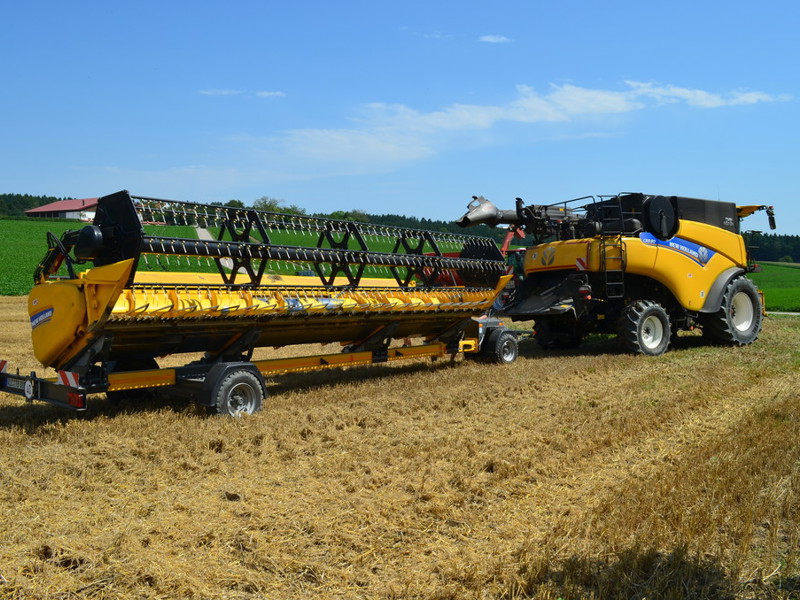

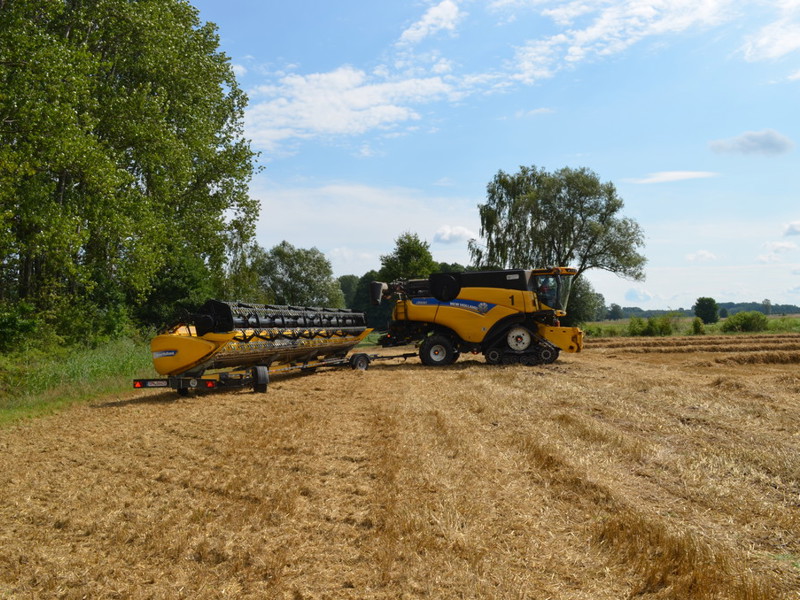

The ZIEGLER tandem axle provides smooth driving characteristics along with problem-free reverse driving. This model transports harvesting attachments with working widths of up to a max of 9.5 m and a permissible total weight of 3.6 tons. Due to the movable axle, a height adjustable draw-bar eye as well as extendable and freely movable supports, this model can be adjusted to every current cutting system and to every current harvester. As standard, the tandem axles are equipped with 10.0/80-12 tyres (10 PR).

FEATURES AND SPECIFICATIONS

  • Models for almost every header
  • V-interlocking for easy header drop-off
  • Painted to correspond to harvester (without additional charge)
  • Galvanised supports and interlockings
  • Flexible rear light carriers
  • Bearing load: 600 kg
  • Axle load: 3,000 kg

Options

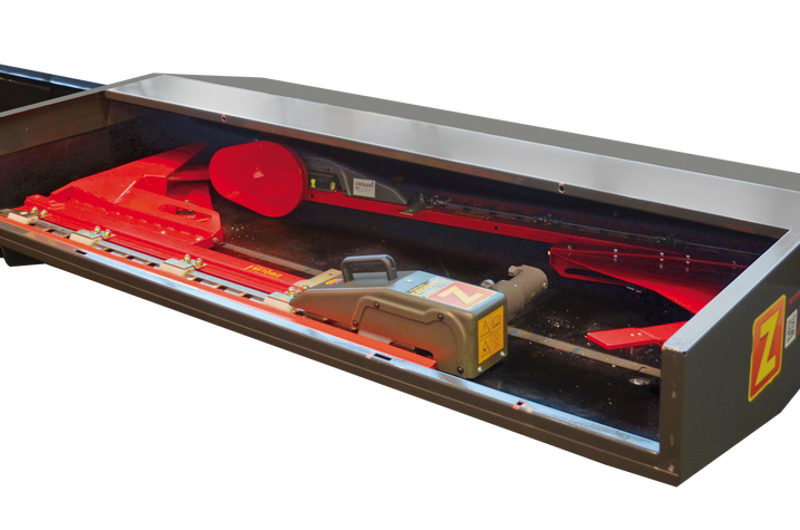

  • Storage box

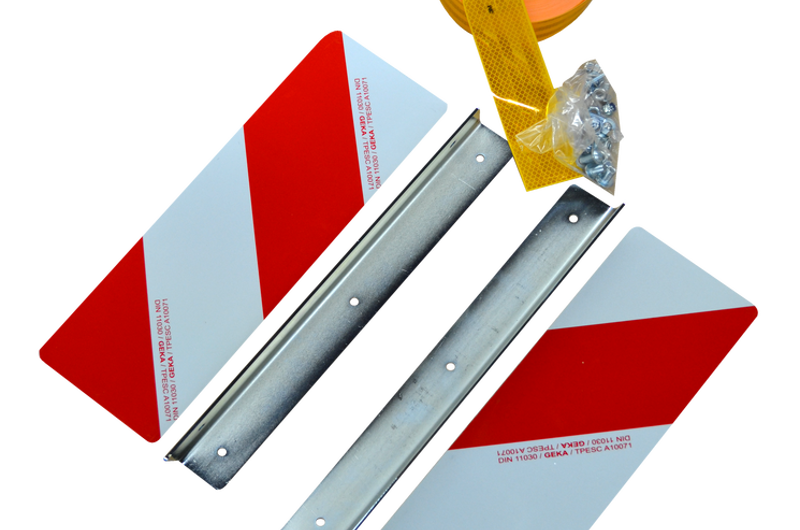

  • Reflector kit

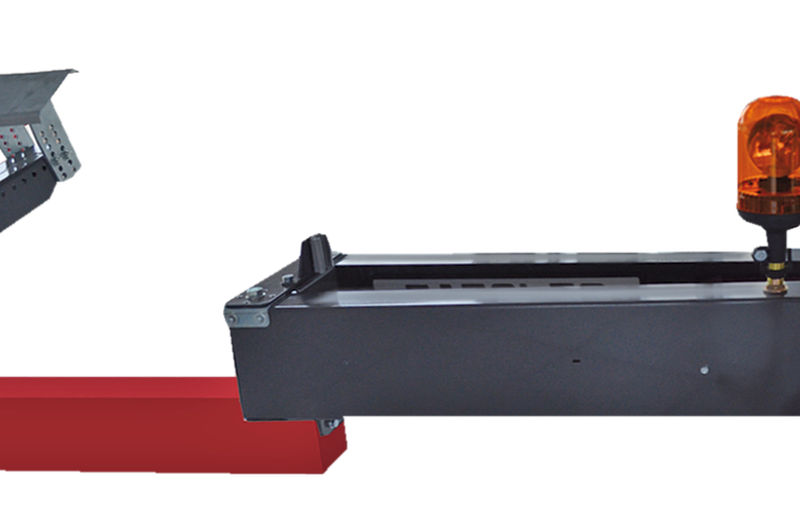

  • Side lighting kit
  • Rotating beacon

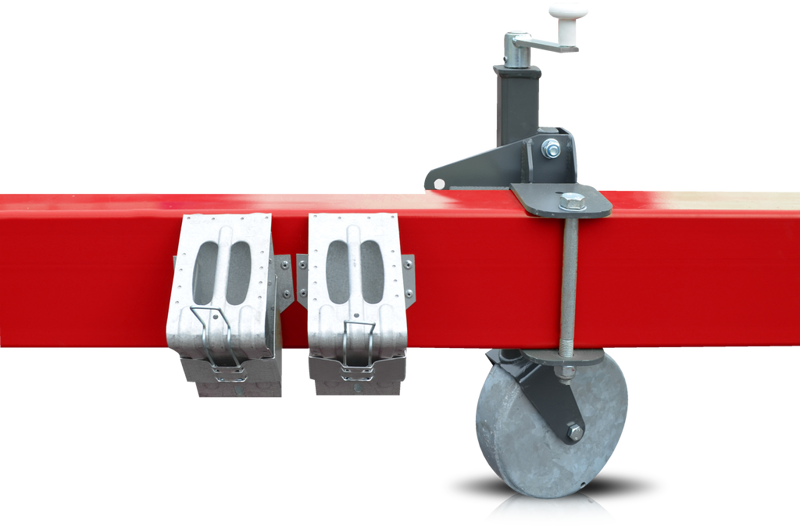

  • Positioning aid for cutting system’s storage
  • 22 PR Tyres

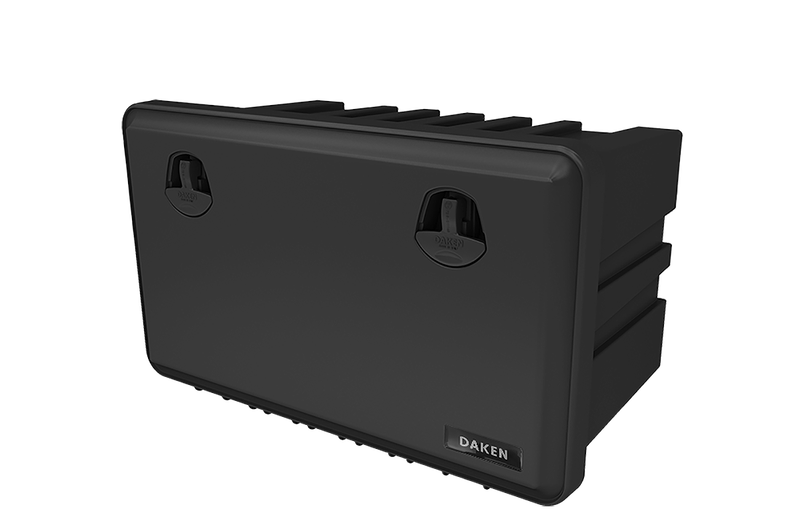

  • Tool box

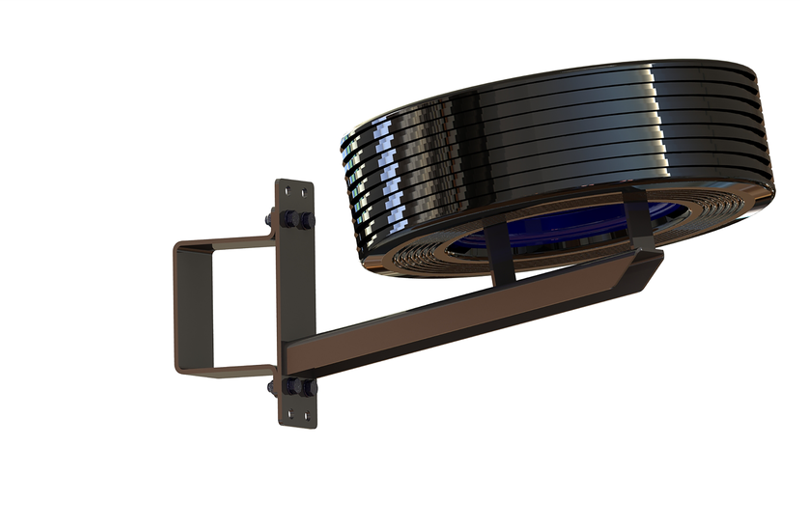

  • Spare wheel carrier
  • Hydraulic brake

  1-axle 2-axle 4WT Tandem
Permitted front axle load 600 kg 3,000 kg 3,000 kg 600 kg
Permitted back axle load 3,000 kg 3,000 kg 3,000 kg 3,000 kg
Permitted total weight 3,600 kg 6,000 kg 6,000 kg 3,600 kg
Maximum width header 7.7 m 10.7 m 12.5 m 9.5 m
Brake Option: parking brake Overrun brake Overrun brake Option: hydraulic brake
Option 30km/h 40km/h 40km/h
