- L x W x H: 3414 x 1656 x 1973 mm.
- Ground clearance: 309 mm.
- Towing Capacity TEC: 907 kg.
- Cargo Box Capacity: 450 kg.
- Capac. Fuel: 40 L.

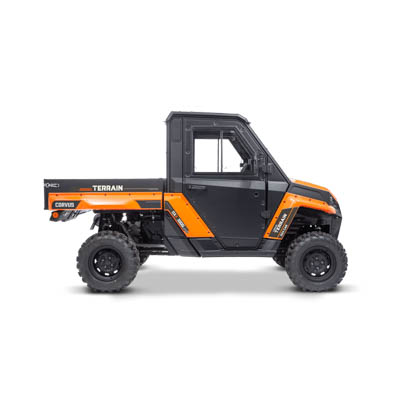

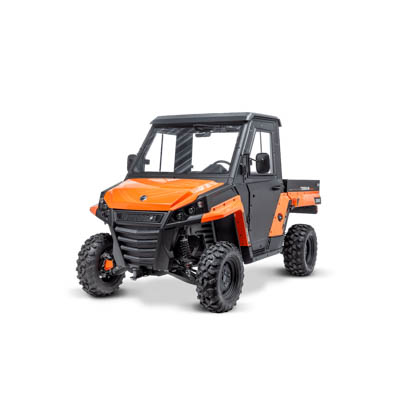

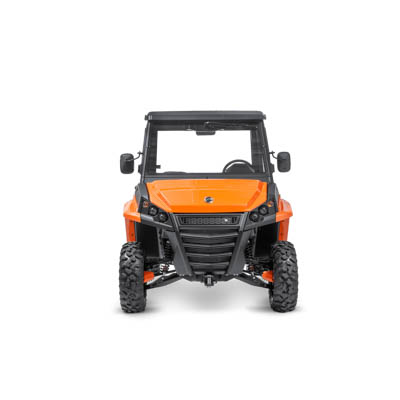

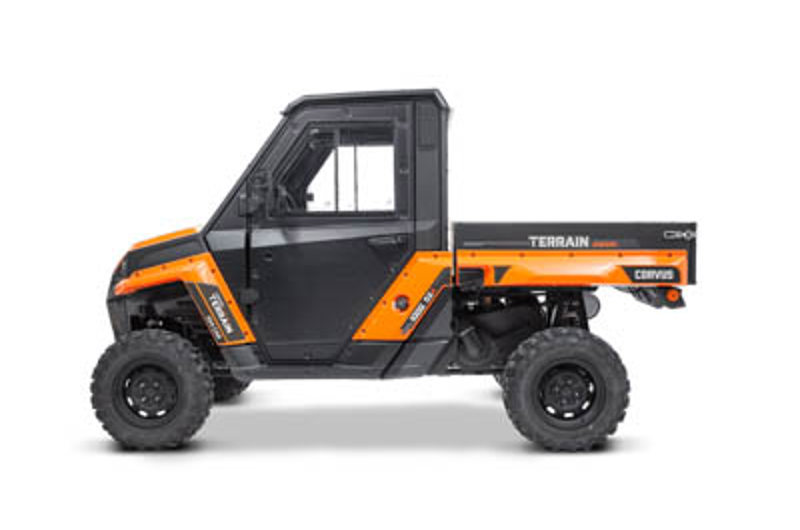

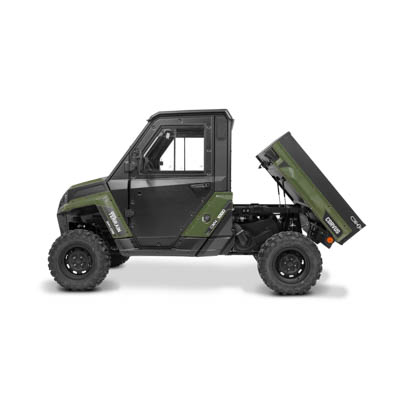

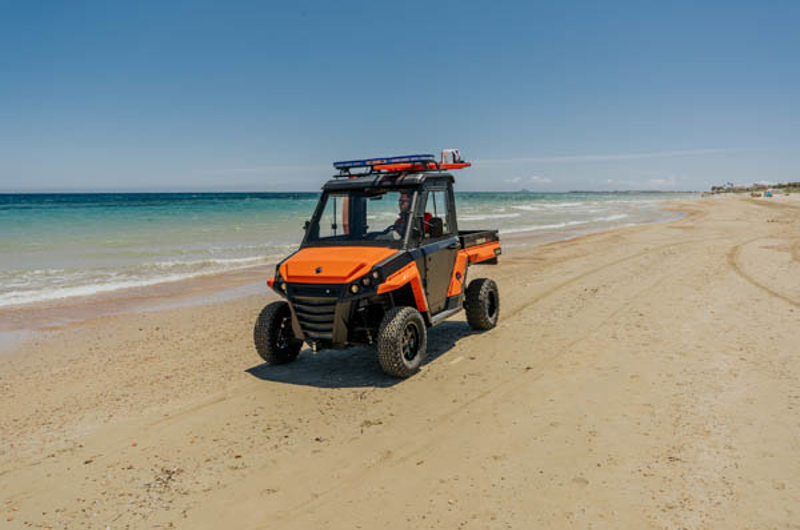

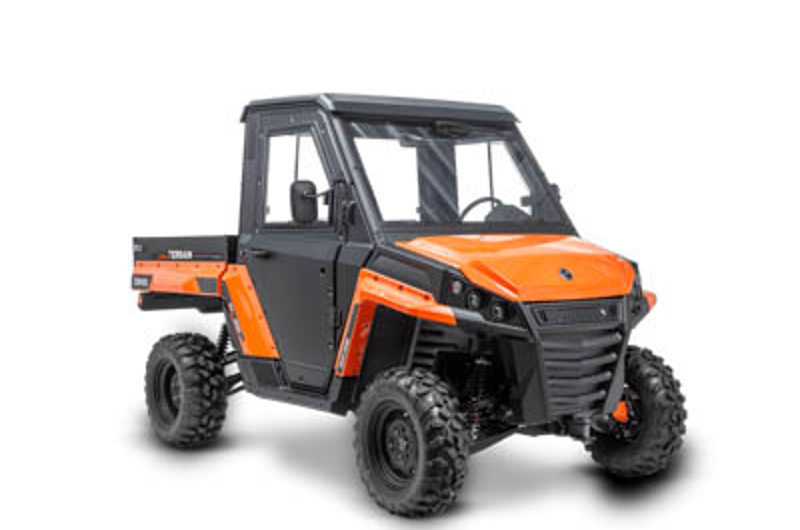

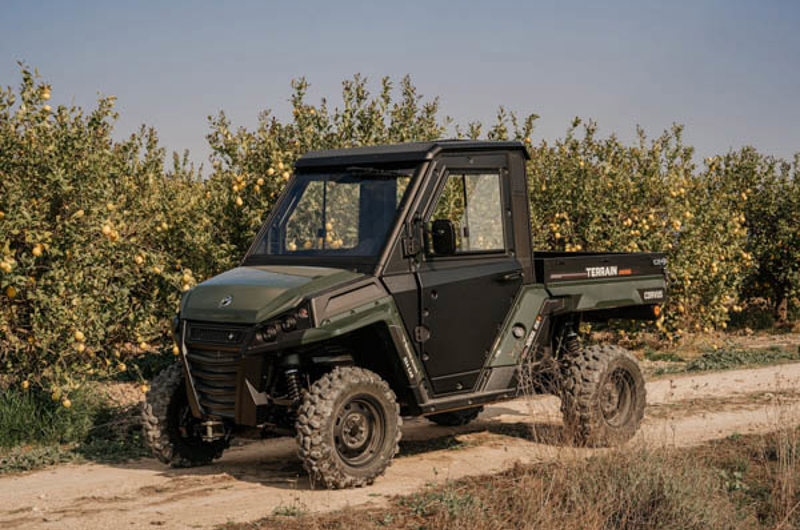

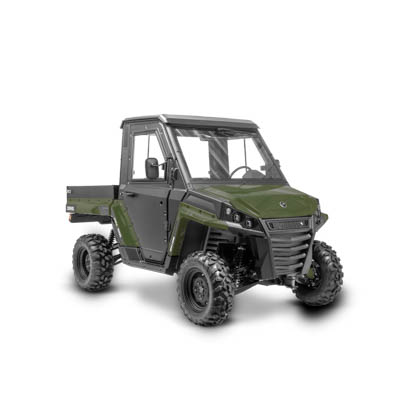

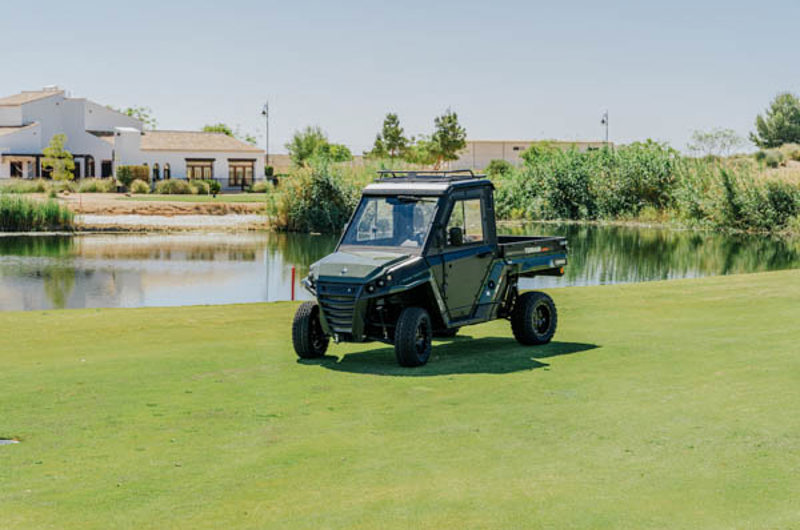

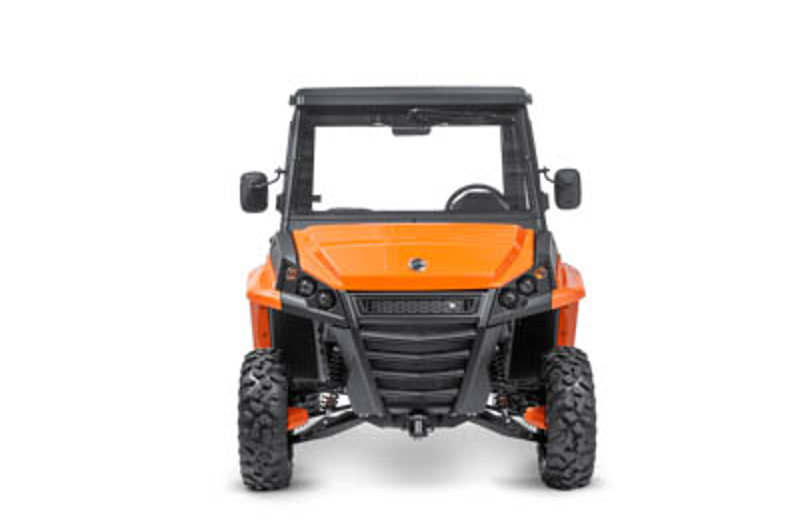

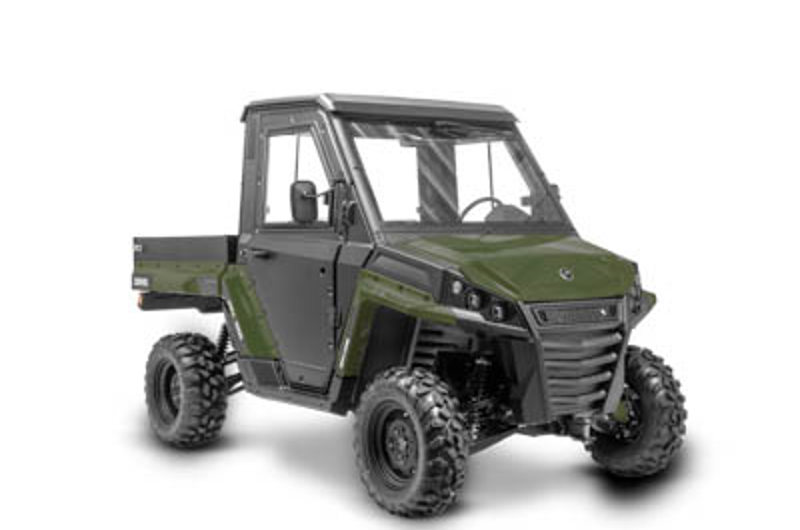

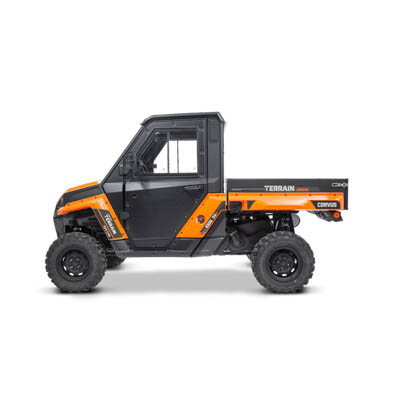

DX4 CAB CLIMA
HIGH LEVEL OF EQUIPMENT
The DX4 CAB CLIMA is the most equipped version of the TERRAIN range, and is specially designed to work hard in extreme conditions. Perform the toughest work under any conditions, thanks to the air conditioning and heating system.
Highlights:
- HVAC and Heater system.
- Courtesy light.
- Front insulation panel.
- Sist. front and rear hitch.
Type approval: T1a and T1b.
FEATURES AND SPECIFICATIONS
- Suspension: Indep. double wishbone. 287 mm travel.
- Damping: Gas shock-absorbers. Adjustable ride height.
- Anti-dive system.
- Front: 256 mm disk brakes with twin-piston callipers.
- Rear: 220 mm disk brakes with single-piston callipers.
- Handbrake: Yes, for back wheels and independent callipers.
- Tyres: Front 29×11. Steel rims R14.
- Tyres: Rear 16×11. Steel rims R14.
- Yanmar diesel, 3 cylinder, 4 stroke.
- 993 cc / 24 hp / 18 kw 3600 rpm
- Water cooling
- Gearbox: CVT. Clutch L-H-N-R
- 4WD-2WD with rear differential lock
- Rigid full doors.
- Courtesy light.
- Front storage.
- Front and rear hitch.
- Homologation: Option T1a / T1b.
- Person capacity: 2 pax.
- Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
- Warranty: 2 years CE.

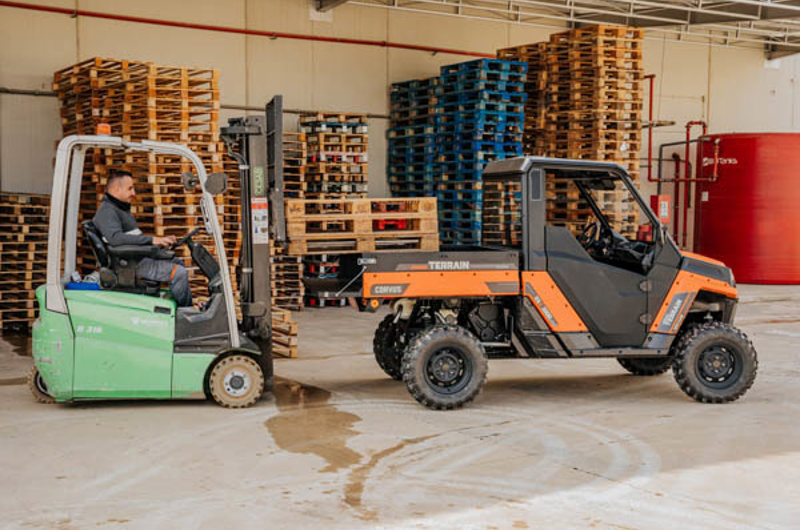

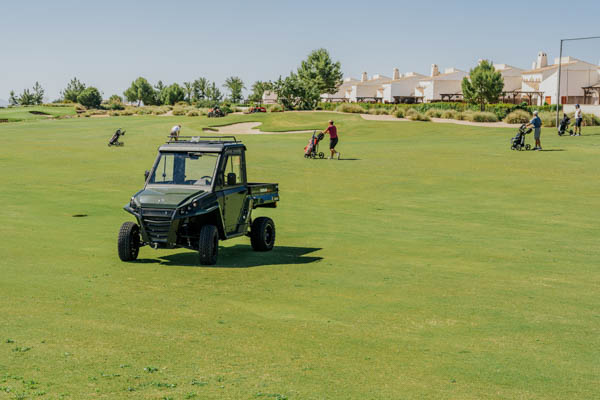

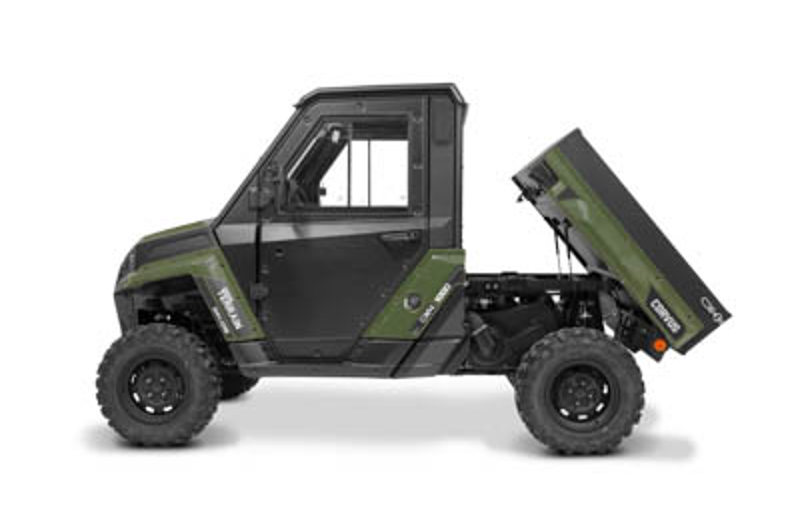

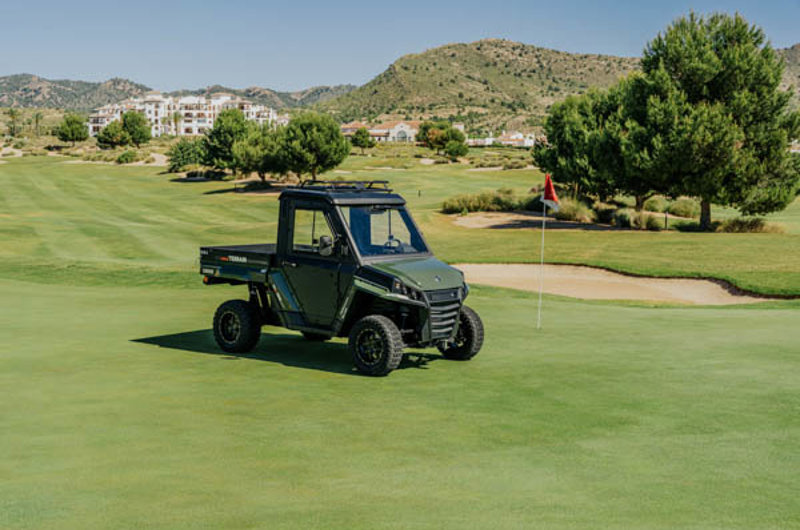

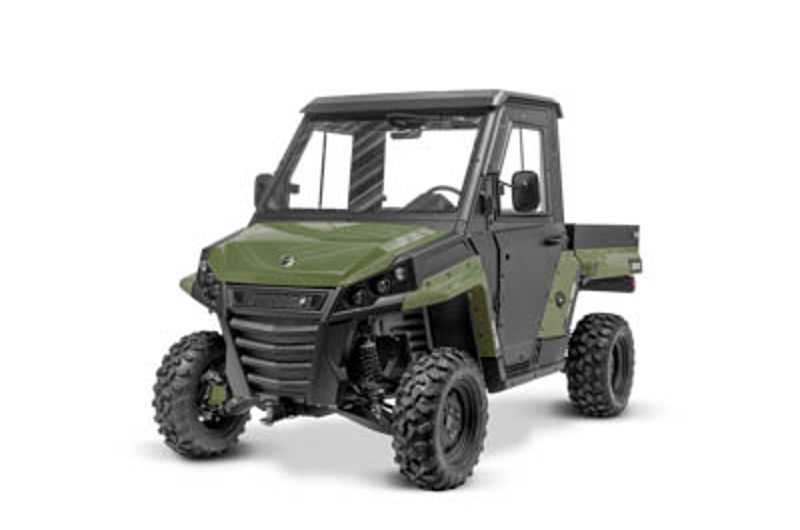

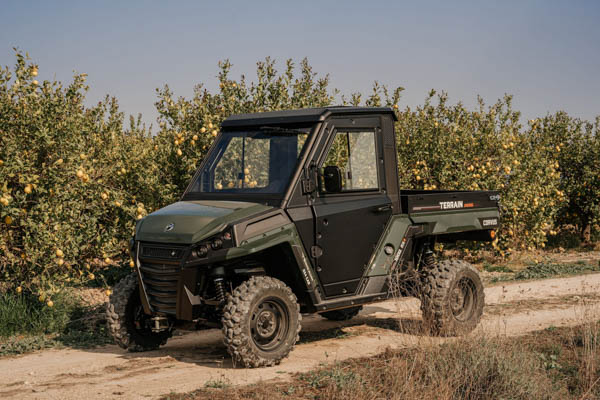

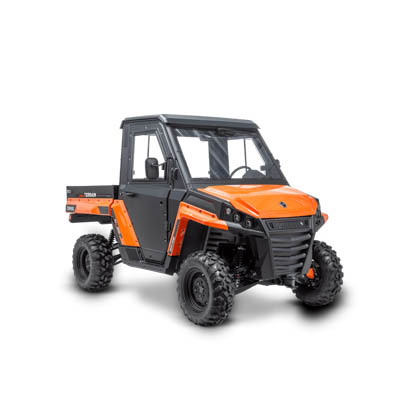

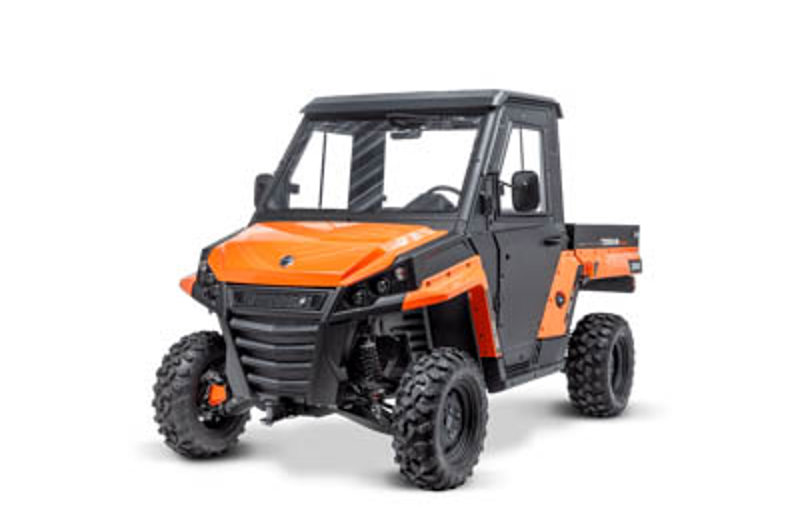

GALLERY
